Water Well BOREWELL Drill Bits COP44

Water Well BOREWELL Drill Bits COP44

    • Water Well BOREWELL Drill Bits COP44
  • Water Well BOREWELL Drill Bits COP44

    Product Details:

    Place of Origin: Hunan, China (Mainland)
    Brand Name: New Diamond
    Certification: ISO9001:2008
    Model Number: COP44

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Carton packaging and wooden box packing
    Delivery Time: 5-8 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: According to order quantity
    Contact Now
    Detailed Product Description
    Type: Drill Bit Processing Type: Forging
    Use: Ore Mining Color: Required
    Bit Face: Center Drop/Flat/convex/concave/double Gauge Face Bits Button Shape: Spherical/Ballistic/parabolic/sharp/falt Bottons
    High Light:

    hard rock drill bits

    ,

    air hammer drill bits

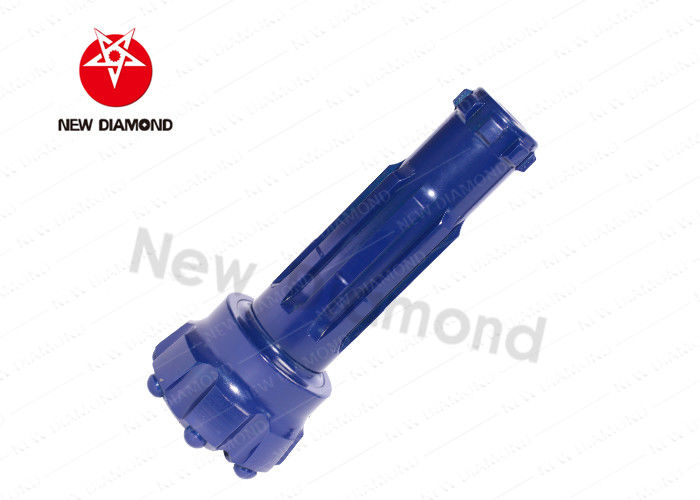

    Water Well BOREWELL Drill Bits COP44

    Description

    Hunan New Diamond offers top quality DTH hammers and bits which have been tested in the hardest rock formation. Our bits use quality hardened steel alloy for the bit body and premium quality tungsten carbide buttons. With superb performance and long life span. Our bits won high reputation among our customers.



    1. Button Shape: Spherical,Semi-ballistic,Ballistic.
    2. Durable performance, wear resistant and withstanding large impacting force.
    3. Long life span.
    5. Fast delivery time.



    Applications

    It is mainly used in geological exploration, coal mine, water conservancy and hydropower, highway, railway, bridge, construction and so on.



    Specifications

    THE Drill Head Diameter(mm) Spline Key Number NO.Air Holes Gauge Buttons Front Buttons Weight(KG)
    105 - 2 6XØ14 5XØ13 8.5
    110 - 2 7XØ14 6XØ13 8.8
    115 - 2 7XØ14 7XØ13 9.0
    120 - 2 8XØ14 7XØ13 9.8
    127 - 2 8XØ14 7XØ14 11.0
    WE can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.

    Feature Advantage

    1. Long life span: the wear-resist of tungsten carbides is 10-20 times higher compared with other similar materials, which greatly extends the life of the carbide bits;
    2. High drilling efficiency: the high grade hardness of the carbides can always stay sharp, which could increase the drilling speeds too;
    3.  Low cost.

    Water Well BOREWELL Drill Bits COP44 0
