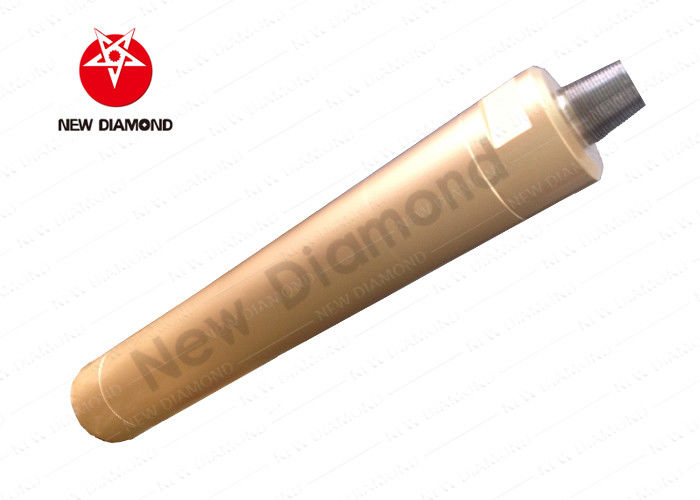

ND Series Borewell Hammer Downhole Drilling Equipment For Ore Mining

ND Series Borewell Hammer Downhole Drilling Equipment For Ore Mining

    • ND Series Borewell Hammer Downhole Drilling Equipment For Ore Mining
  • ND Series Borewell Hammer Downhole Drilling Equipment For Ore Mining

    Product Details:

    Place of Origin: Hunan, China (Mainland)
    Brand Name: New Diamond
    Certification: ISO9001:2008
    Model Number: ND series hammers

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Carton packaging and wooden box packing
    Delivery Time: 5-8 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: According to order quantity
    Contact Now
    Detailed Product Description
    Type: Hammer Processing Type: Forging
    Use: Ore Mining Color: Required
    Machine Type: Drilling Equipment Usege: Mining&Construction&Water Well Drilling
    High Light:

    downhole drilling tools

    ,

    borewell hammer

     Description


    NEWDIMOND hammers Widely used in geotechnical engineering to wear all kinds of hard in the hard, hard and other hard to drill tough rock. The low-pressure impactor is a valve type central exhaust impactor. The effect of discharging the rock powder is good, the repeated crushing of the rock slag is reduced, the wear of the drill bit is reduced, the drilling efficiency is improved, and the interior of the impactor is designed by using a new rock drilling theory. The size of the structure makes the impactor get the ideal energy transmission, with a single impact power, faster rock-drilling speed, and lower air consumption; using high-quality raw materials and advanced processing technology, the performance is more stable and the service life is longer. Disassembly easy, low failure, easy maintenance. Suitable for mining, quarry, road and other projects drilling blasting holes, landslide protection, dam reinforcement, anchoring and other engineering holes, geothermal air-conditioning, hydrology, water wells and other fields.



    1, using the latest contemporary rock drilling theory design of the internal structure of the impactor, the impactor to obtain the best energy transfer, drilling speed, low consumption of air.
    2, using high-quality raw materials and advanced processing technology, stable performance and long life.
    3, using a simple and reliable and easy assembly and disassembly of the internal structure, easy maintenance.



    Applications



    Widely used in mines, quarries, earthworks and other engineering drilling blasting hole, guardrail hole, mountain reinforcement, anchorage and other engineering holes, geothermal exploration hole, Well bore and other fields.



    Specifications




    ND Series High Air Pressure DTH Hammers Without Foot Valve

    Technical Data

    Length(Without Bit) ND25A ND35A ND45A ND45S ND55A ND55S
    872mm 888mm 1011mm 986mm 1110mm 1110mm
    Weight(Without Bit) 16.00kg 25.00kg 43.20kg 37.00kg 69.00kg 66.00kg
    External Diameter Ø71mm Ø82mm Ø99mm Ø92mm Ø126mm Ø116mm
    Bit Shank ND25 IR35 COP44/DHD340 COP44/DHD340 COP54/DHD350R COP54/DHD350R
    Hole Range Ø71-Ø90mm Ø90-Ø115mm Ø110-Ø135mm Ø105-Ø120mm Ø135-Ø155mm Ø127-Ø145mm
    Connection Thread T42x10x1.5 API2 3”/8REG API2 3”/8REG API2 3”/8REG

    API2 3”/8REG

    API3 1”/2REG

    API2 7”/8REG

    2 7”/8 IF

    API2 3”/8REG

    API3 1”/2REG

    API2 7”/8REG

    Working Pressure 1.0-1.5Mpa 1.0-1.5Mpa 1.2-2.0Mpa 1.2-2.0Mpa 1.3-2.3Mpa 1.3-2.3Mpa
    Impact Rate at 14 Bar 25HZ 25HZ 30HZ 30HZ 28HZ 28HZ
    Recommended Rotation Speed 22-35r/min 25-40r/min 22-35r/min 25-40r/min 20-35r/min 25-35r/min
    Air Consumption

    1.0Mpa:4.0m³/min

    1.5Mpa:6.0m³/min

    1.0Mpa:3.8m³/min

    1.5Mpa:7.5m³/min

    1.0Mpa:6.0m³/min

    1.8Mpa:10.0m³/min

    2.4Mpa:15.0m³/min

    1.8Mpa:8.0m³/min

    2.4Mpa:13.0m³/min

    1.0Mpa:7.0m³/min

    1.8Mpa:14.0m³/min

    2.4Mpa:19.0m³/min

    1.0Mpa:7.0m³/min

    1.8Mpa:13.5m³/min

    2.4Mpa:18.0m³/min




    ND Series High Air Pressure DTH Hammers Without Foot Valve

    Technical Data

    Length(Without Bit) ND55C(A) ND65A ND75A ND85A ND1120A
    1102mm 1238mm 1258mm 1359mm 1880mm
    Weight(Without Bit) 68.00kg 98.00kg 120.00kg 175.00kg 474.00kg
    External Diameter Ø126mm Ø142/Ø146mm Ø165mm Ø180/Ø185mm Ø275mm
    Bit Shank ND55C/DHD350Q COP64/DHD360 COP64/DHD360 COP84/DHD380 CDHD1120
    Hole Range Ø135-Ø155mm Ø155-Ø203mm Ø175-Ø216mm Ø195-Ø254mm Ø305-Ø445mm
    Connection Thread

    API2 3”/8REG

    API3 1”/2REG

    API2 7”/8REG

    API3 1”/2REG API3 1”/2REG API4 1”/2REG API6 5”/8REG
    Working Pressure 1.3-2.3Mpa 1.5-3.0Mpa 1.5-3.0Mpa 1.5-3.0Mpa 2.0-3.5Mpa
    Impact Rate at 17 Bar 28HZ 25HZ 23HZ 22HZ 20HZ
    Recommended Rotation Speed 22-35r/min 20-30r/min 20-30r/min 15-25r/min 15-25r/min
    Air Consumption

    1.0Mpa:8.0m³/min

    1.8Mpa:6.0m³/min

    2.4Mpa:19.0m³/min

    1.0Mpa:9.0m³/min

    1.8Mpa:18.0m³/min

    2.4Mpa:26.0m³/min

    1.0Mpa:11.0m³/min

    1.8Mpa:20.0m³/min

    2.4Mpa:28.0m³/min

    1.0Mpa:12.0m³/min

    1.8Mpa:22.0m³/min

    2.4Mpa:28.0m³/min

    1.0Mpa:28.0m³/min

    1.8Mpa:50.0m³/min

    2.4Mpa:71.0m³/min





    Feature Advantage



    1 Price commitment: in order to ensure the high reliability of products, high-quality brand products are selected for raw material selection. Under the same competitive conditions, the products will be provided to customers at a favorable price without reducing the technical performance of products.


    2 Quality commitment: the manufacture and inspection of the products have quality records and testing data, and the performance of the products can stand the customer's inspection.



    3 Customer service: in order to create new Jingang brand, enhance corporate reputation and set up corporate image, we serve customers with the principle of "preferential price, considerate service and reliable product quality".



    The appearance of the picture is different from that of the actual product, and the actual product is the standard.
