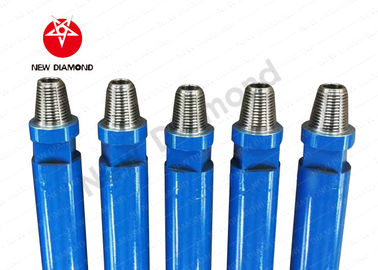

API Standard Water Well Drill Rods / DTH Drill Tube High Resistance Grinding

API Standard Water Well Drill Rods / DTH Drill Tube High Resistance Grinding

    • API Standard Water Well Drill Rods / DTH Drill Tube High Resistance Grinding
  • API Standard Water Well Drill Rods / DTH Drill Tube High Resistance Grinding

    Product Details:

    Place of Origin: Hunan, China (Mainland)
    Brand Name: New Diamond
    Certification: ISO9001:2008
    Model Number: API

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Carton packaging and wooden box packing
    Delivery Time: 5-8 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: According to order quantity
    Contact Now
    Detailed Product Description
    Type: Drill Pipe/DTH Drill Rods Machine Type: Drilling Equipment
    Material: Alloy Steel Processing Type: Forging/Friction Welded/Aerated Welding
    Use: Well Drilling Colour: According To Demand
    High Light:

    dth drill pipe

    ,

    rock drill rods

    Description


    We adopts famous domesticlarge steel enterprises(such as Anshan lron and Steel Group corporation and Hengyang Steel Group) production of material to produce drill pipe, and heat treatment of materials by using an integrated multi-processing furnace, professional CNC machining was applied in all of the connection thread processing, all the threads are configured thread gauge, which are in accordance with international standard, lnternal thickening technology has carried on the tempering process after friction welding, so the processing quality of drill pipe is stable, reliable, use cycle greatly extended.



    We can process different length, diameter and wall thickness and material of APl standard thread rod, we also can design and manufacture drill pipe according to customers' requirement ofthe material, length, wall thickness and connection thread.



    Applications


    Widely used in mines, quarries, earthworks and other engineering drilling blasting hole, guardrail hole, mountain reinforcement, anchorage and other engineering holes, geothermal exploration hole, Well bore and other fields.



    Specifications


    pipe diameter

    (mm)

    pipe length

    (mm)

    wall thickness

    (mm)

     connection thread  trigger slot
    inch mm
    3 76 1000-6000 5.00 API2 3/8”REG square 57/64.5
    3 76 1000-6000 6.00 API2 3/8”REG square 57/64.5
    3 76 1000-9000 8.00 API2 3/8”REG square 57/64.5
    3 1/2 89 1000-6000 6.00 API2 3/8”REG square 70/64
    3 1/2 89 1000-6000 6.00 API2 3/8”REG square 70/64
    3 1/2 89 1000-9600 8.00 API2 3/8”REG square 70/64
    3 1/2 89 1000-9600 8.00 API2 3/8”REG square 70/64
    4 102 1000-9000 8.00 API2 3/7”REG square 76/89
    4 102 1000-9000 10.00 API2 3/7”REG square 76/89
    4 1/2 114 1500-7620 6.00 API3 1/2”REG 89/95
    4 1/2 114 1500-9140 8.00 API3 1/2”REG 89/95
    4 1/2 114 1500-9140 8.00 API3 1/2”REG 89/95
    4 1/2 114 1500-9140 10.00 API3 1/2”REG 89/95
    4 1/2 114 1500-9140 18.00 API3 1/2”REG 89/95
    5 127 1500-9500 10.00 API3 1/2”REG 89
    5 127 1500-9500 12.00 API3 1/2”REG 89
    5 127 1500-9500 14.00 API3 1/2”REG 89
    5 127 1500-9500 18.00 API3 1/2”REG 89
    5 1/2 140 1500-9500 9.00 API4 1/2”REG or 4’FH 114
    5 1/2 140 1500-9500 10.00 API4 1/2”REG or 4’FH 114
    5 1/2 140 1500-9500 12.00 API4 1/2”REG or 4’FH 114



    Feature Advantage


    1. price commitment: in order to ensure the high reliability of products, raw materials are selected by high quality brand products. Based on the same competitive conditions, without reducing the technical performance of products, we offer customers the best price at a sincere price.



    2 Quality commitment: product manufacturing and testing have quality records and inspection data; the performance of the product can withstand customer inspection.



    3. Customer service: in order to create new diamond brand, enhance the visibility of enterprises,establish corporate image, we serve customers with the principle of "preferential prices, good service, reliable product quality" principle.



    The appearance of the picture is different from that of the actual product, and the actual product is the standard.
