Hunan New Diamond Construction Machinery Co., Ltd.

|
| Place of Origin: | Hunan, China |
| Brand Name: | New Diamond |
| Model Number: | Mission 60 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Delivery Time: | 2-4weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000pcs/month |
| Type: | Drill Bit | Machine Type: | Drilling Tool,Drilling Equipment,Downhole Tools |
|---|---|---|---|
| Material: | Carbide,alloy Steel | Processing Type: | Forging |
| Use: | Well Drilling,Coal Mining,Mining And Drilling,Quarrying | Color: | Blue,other Color Available,golden Or Request |
| Product Name: | Dth Bits | Application: | Rock Drilling,Water Well Drilling And Rock Drilling,underground Mining,quarries |
| Advantage: | High Wear Resistant,Widely Used Hard Rocks And Have Good Penetration,High-efficiency,high Performance And Factory Price,Direct Manufacturer | Usage: | Hole Drilling,Mining,Geothermal Drilling,Water Well Drilling |
| Button Shape: | Spherical/Ballistic/parabolic/sharp/falt Bottons | Advantages: | High Quality And Factory Prices |
| Formation: | Piston And Drive Chuck And Extenrnal Cylinder | Length: | 1129mm |
| Weight: | 91.5kg | Outer Diam: | 144mm |
| High Light: | Forging Processing DTH Hammer Bits,DTH Hammer Bits Downhole Tools,DTH Hammer Bits Wear Resistant |
||

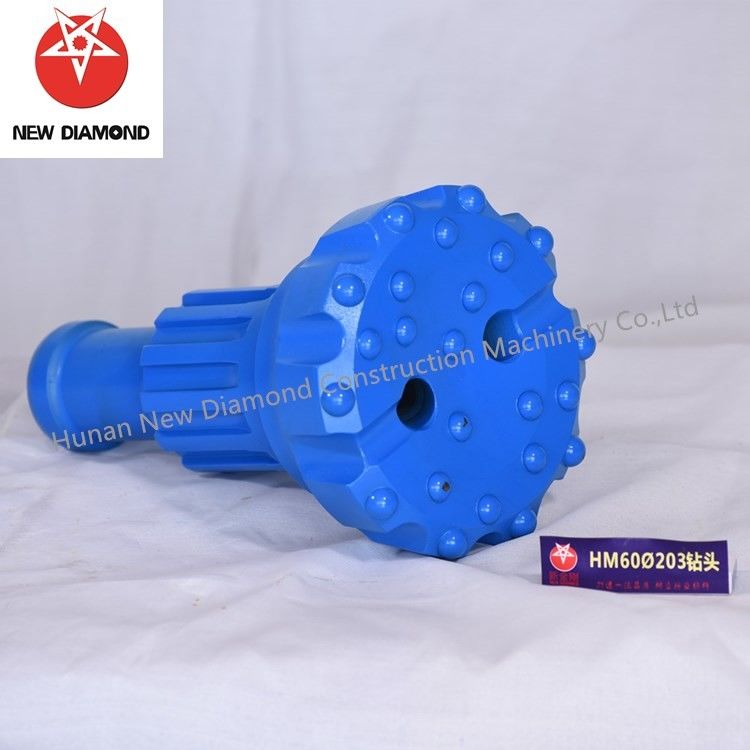

MISSION60 154mm 165mm 178mm 191mm DTH Hammer Rock Drill Bit
The Drill Bits are made from grade hard alloy and special steel, generally matched with the rock drill, to drill the rock. The drill tools are used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc.
Specifications
| QL series | Head shape |
Diameter mm |
Number of vents | Button qty.pcs*dia.mm | weight (KG) | ||
| Button Type | Gauge | Front | |||||
| Mission 60 | Concave Face | 152 | 2 | Spherical | 8XØ18 | 4XØ16+4XØ15 | |
| Flat Face | 165 | 2 | Spherical | 8XØ18 | 8XØ16 | 23 | |
| Concave Face | 171 | 2 | Spherical | 8XØ18 | 6XØ16+4XØ15 | 24.4 | |
| Concave Face | 178 | 2 | Spherical | 8XØ18 | 6XØ16+5XØ15 | 25.3 | |
| Concave Face | 190 | 2 | Spherical | 9XØ18 | 6XØ16+5XØ15 | 26.5 | |
| Concave Face | 203 | 2 | Spherical | 10XØ18 | 8XØ16+6XØ15 | 29.7 | |
| WE can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape. | |||||||
1.10 years manufacturing experience;
2. Certificate: ISO9001:2008
3. Material: Carbide
Applications
The New Diamond dive drill is mainly used in geological exploration, coal mine, water well drilling, borewell drilling, highway, railway, bridge, construction, mining, quarry, Civil engineering, ore mining,Dimension stone industry and so on.
1. Long life span: the wear-resist of tungsten carbides is 10-20 times higher compared with other similar materials, which greatly extends the life of the carbide bits;
2. High drilling efficiency: the high grade hardness of the carbides can always stay sharp, which could increase the drilling speeds too;
3. Stable drilling speed: the bit is scraped and cut to break the rock.
4. Good performance: strong wear resistance, good diameter protection which will make the cutting teeth more efficiently.
5.Lower cost.
The appearance of the picture is different from that of the actual product, and the actual product is the standard.
