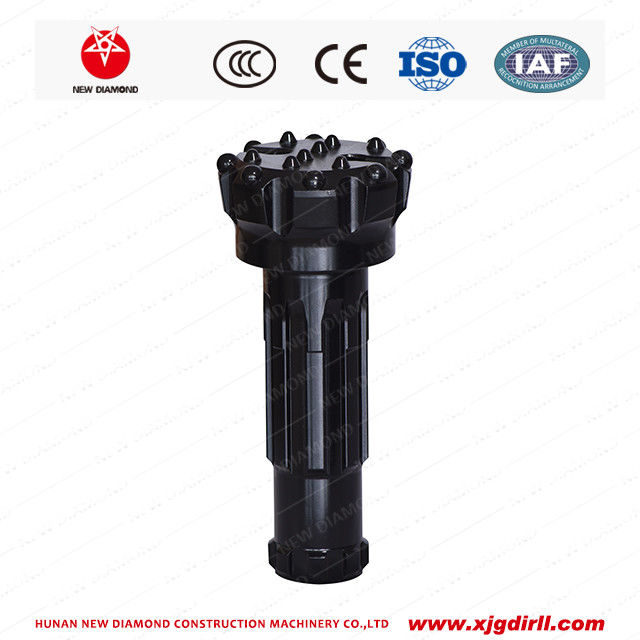

18.9kg Dhd340a Dhd350 Dth Mining Rock Drill Bit

18.9kg Dhd340a Dhd350 Dth Mining Rock Drill Bit

18.9kg Dhd340a Dhd350 Dth Mining Rock Drill Bit
18.9kg Dhd340a Dhd350 Dth Mining Rock Drill Bit
18.9kg Dhd340a Dhd350 Dth Mining Rock Drill Bit
Product Details:
Place of Origin: Hunan, China
Brand Name: New Diamond
Certification: ISO9001:2008
Model Number: dhd340 dhd350
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 2-4weeks
Payment Terms: T/T, Western Union
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Type: DTH Hammer Rock Drill Bit Machine Type: Drilling Tool,Drilling Equipment,Downhole Tools
Material: Carbide,alloy Steel Processing Type: Forging
Use: BoreWell Drilling,Coal Mining,Mining And Drilling,Quarrying Color: Blue,other Color Available,golden Or Request
Product Name: Dth Bits Dhd350 Application: Rock Drilling,Water Well Drilling And Rock Drilling,underground Mining,quarries
Advantage: High Wear Resistant,Widely Used Hard Rocks And Have Good Penetration,High-efficiency,high Performance And Factory Price,Direct Manufacturer Usage: Hole Drilling,Mining,Geothermal Drilling,Water Well Drilling
Button Shape: Spherical/Ballistic/parabolic/sharp/falt Bottons Advantages: High Quality And Factory Prices
Formation: Piston And Drive Chuck And Extenrnal Cylinder Shank Length: 260 Mm
Weight: 18.9 Kg Head Diam: 165 Mm
High Light:

Dth Mining Rock Drill Bit

,

Dhd350 Mining Rock Drill Bit

,

18.9kg Mining Rock Drill Bit

Mining Bits Dhd340a Dth Bits Dhd350





Specifications

DHD series Head shape

Diameter

mm

Number of vents Button qty.pcs*dia.mm weight (KG)
Button Type Gauge Front
DHD 350 Concave Face 140 2 Spherical 7XØ18 4XØ15+3XØ14 15.8
Concave Face 146 2 Spherical 8XØ18 8XØ14 16.5
Concave Face 152 2 Spherical 8XØ18 8XØ14 17
Concave Face 165 2 Spherical 8XØ18 4XØ16+4XØ14 18.9
Concave Face 178 2 Spherical 8XØ18 6XØ16+5XØ14 20.4
WE can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.

Characteristics

- Advanced hammer designs with high power and air efficiency increases productivity

- Tailored product offering covers all your applications and conditions

- Easy service and maintenance designs reduces machine downtime

- Generic and proprietary shank options give you flexibility and reliability



1.10 years manufacturing experience;
2. Certificate: ISO9001:2008
3. Material: Carbide



Applications

The New Diamond manufactured dhd350 is widely used in geological exploration, coal mine, water well drilling, borewell drilling, highway, railway, bridge, construction, mining, quarry, Civil engineering, ore mining,Dimension stone industry and so on.



Feature Advantage

1. Long life span: the wear-resist of tungsten carbides is 10-20 times higher compared with other similar materials, which greatly extends the life of the carbide bits;
2. High drilling efficiency: the high grade hardness of the carbides can always stay sharp, which could increase the drilling speeds too;
3. Stable drilling speed: the bit is scraped and cut to break the rock.
4. Good performance: strong wear resistance, good diameter protection which will make the cutting teeth more efficiently.

5.Lower cost.



The appearance of the picture is different from that of the actual product, and the actual product is the standard.
