High Air Pressure Atlas Copo DHD340 COP44 DTH Hammer Bits

High Air Pressure Atlas Copo DHD340 COP44 DTH Hammer Bits

High Air Pressure Atlas Copo DHD340 COP44 DTH Hammer Bits
High Air Pressure Atlas Copo DHD340 COP44 DTH Hammer Bits
High Air Pressure Atlas Copo DHD340 COP44 DTH Hammer Bits
Product Details:
Place of Origin: Hunan, China
Brand Name: New Diamond
Model Number: DHD340/COP44
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 100usd-200usd
Delivery Time: 2-4weeks
Payment Terms: T/T, Western Union
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Type: Drill Bit Machine Type: Drilling Tool,Drilling Equipment,Downhole Tools
Material: Carbide,alloy Steel Processing Type: Forging
Use: Well Drilling,Coal Mining,Mining And Drilling,Quarrying Color: Blue,other Color Available,golden Or Request
Product Name: Dth Bits Application: Rock Drilling,Water Well Drilling And Rock Drilling,underground Mining,quarries
Advantage: High Wear Resistant,Widely Used Hard Rocks And Have Good Penetration,High-efficiency,high Performance And Factory Price,Direct Manufacturer Usage: Hole Drilling,Mining,Geothermal Drilling,Water Well Drilling
Button Shape: Spherical/Ballistic/parabolic/sharp/falt Bottons Advantages: High Quality And Factory Prices
Formation: Piston And Drive Chuck And Extenrnal Cylinder Shank Length: 209mm
Weight: 7-10kg Outer Diam: 108MM,115MM,127MM 130MM
High Light:

COP44 DTH Hammer Bits

,

DHD340 DTH Hammer Bits

,

Atlas Copo DTH Hammer Bits

High Air Pressure Atlas Copo DHD340 COP44 DTH Drill Hammer Bits





DTH Drill Bits are one of our main products. After many years development, we have rich experience in develop and manufacture high quality DTH hammer drill button bits, which adopted high-quality raw materials, advanced technology and passed through strictly inspection.



Specifications





DHD



Head shape

Diameter

(mm)

Number of vents



NO X button diamter



weight (KG)



Toothed

Gauge Front
DHD340 Concave Face 110 2 Round Button 8XØ14 6XØ14 -
Flat Face Bit 127 2 Round Button+Ballistic Button 8XØ14 7XØ14 -
Concave Face 140 2 Round Button 8XØ14 8XØ14 -
DHD340A Convex Face 115 2 Round Button+Ballistic Button 7XØ16 6XØ14 -
Convex Face 120 2 Round Button+Ballistic Button 8XØ14 7XØ14 -
Flat Face Bit 152 2 Round Button+Ballistic Button 8XØ18 8XØ14 -
Concave Face 170 2 Round Button 8XØ18 6XØ15+4XØ14 -
Concave Face 200 3 Round Button 9XØ18 6XØ16+6XØ14 -
We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.





1.10 years manufacturing experience;
2. Certificate: ISO9001:2008
3. Material: Carbide





Applications

Widely used in mines, quarries, earthworks and other engineering drilling blasting hole, guardrail hole,mountain reinforcement, anchorage and other engineering holes, geothermal exploration hole, Well bore and other fields.


Feature Advantage

1. Long life span: the wear-resist of tungsten carbides is 10-20 times higher compared with other similar materials, which greatly extends the life of the carbide bits;
2. High drilling efficiency: the high grade hardness of the carbides can always stay sharp, which could increase the drilling speeds too;
3. New Diamond's bits are widely used in different rock formations like carbonate rock,limestone,chalk rock, clay rock,siltstone and sandstone;
4. It can greatly reduce the drilling cost, because of its high drilling speed and life span, which reduces the times to changes bits in the drilling service.



The appearance of the picture is different from that of the actual product, and the actual product is the standard.

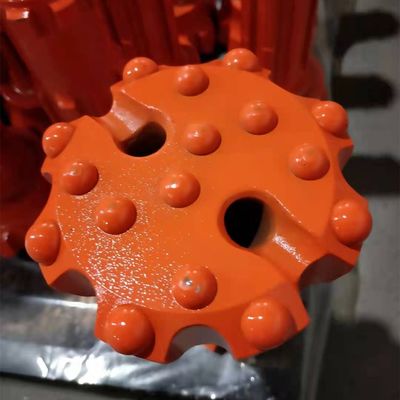

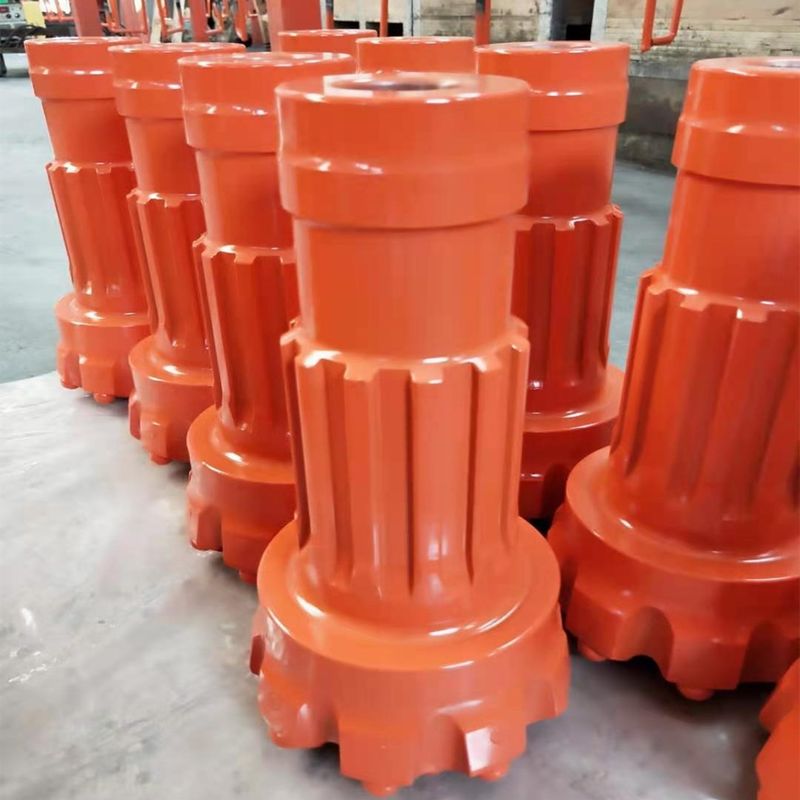

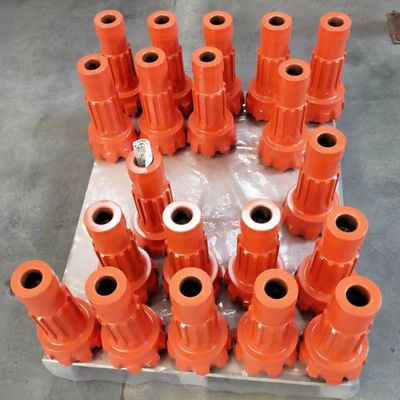

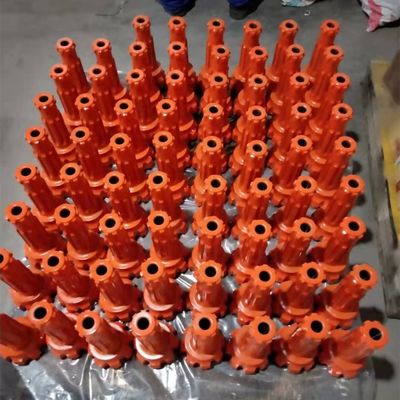

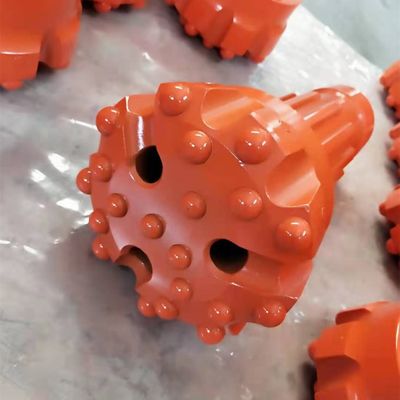

High Air Pressure Atlas Copo DHD340 COP44 DTH Hammer Bits 0High Air Pressure Atlas Copo DHD340 COP44 DTH Hammer Bits 1High Air Pressure Atlas Copo DHD340 COP44 DTH Hammer Bits 2High Air Pressure Atlas Copo DHD340 COP44 DTH Hammer Bits 3
