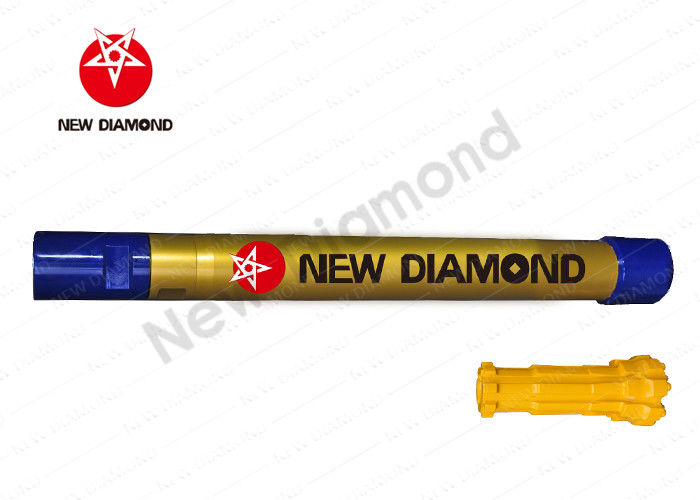

Deep Hole Drilling Reverse Circulation Hammer For Mining Tools , NRC Series

Deep Hole Drilling Reverse Circulation Hammer For Mining Tools , NRC Series

  • Deep Hole Drilling Reverse Circulation Hammer For Mining Tools , NRC Series
Deep Hole Drilling Reverse Circulation Hammer For Mining Tools , NRC Series
Product Details:
Place of Origin: Hunan, China (Mainland)
Brand Name: New Diamond
Certification: ISO9001:2008
Model Number: Reverse Circulation Hammer
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton packaging and wooden box packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: According to order quantity
Contact Now
Detailed Product Description
Type: Hammer Processing Type: Forging
Use: Ore Mining Color: Required
Machine Type: Drilling Equipment Material: Alloy Steel
High Light:

rc hammer

,

rock drill accessories

NRC series Reverse Circulation Hammer for Mining tools





Applications


Our DTH hammer are widely applied to open pit and underground mining to drill blasting holes, drainage holes, ventilation holes, center holes or blasting holes of raising boring, pipe holes and other deep holesin all various strength rocks, such as quarry exploitation, earthwork projects, water-well, constructionsand so on.



Specifications






Item Description Weight(kg)
NRC45 NRC55 NRC65 NRC52
1, Internal Ciclip 0.03 0.04 0.05 0.04
2, Air Screen 0.35 0.44 0.65 0.44
3, Top Sub 6.50 9.65 20.00 9.65
4, “O”Ring 0.01 0.02 0.02 0.02
5, Sample Tube 5.10 6.72 12.50 6.75
6, Check Valve 0.25 0.68 0.85 0.68
7, Spring 0.04 0.12 0.10 0.12
8, “O”Ring 0.01 0.02 0.02 0.02
9, Air Distributor 0.85 1.48 3.50 1.48
10, “O”Ring 0.02 0.01 0.02 0.01
11, Internal Cylinder 2.20 4.12 4.20 4.12
12, Piston 8.50 16.90 24.00 16.90
13, External Cylinder 14.50 19.50 32.00 21.50
14, Guided Sleeve 1.20 0.90 5.50 1.90
15, “O”Ring - - - 0.02
16, Stop “O”Ring - - - 0.01
17, Stop Ring - - - 0.32
18, Sharout - - - 1.86
19, Drive Chuck 3.20 5.65 6.50 4.17
20, Bit Retaining Pin 0.01 0.15 0.30 -
21, Drill Bit 10.50 15.80 31.00 11.05


Feature Advantage


1. Price commitment: in order to ensure the high reliability of products, raw material selection are using grapefruit brand products; under the same competitive conditions,and not to reduce product technical performance on the basis of sincerity at a favorable price to customers.


2. Quality commitment: product manufacturing and testing have quality records and inspection data; the performance of the product can withstand customer inspection.



3. Customer service: in order to create new diamond brand, enhance the visibility of enterprises, establish corporate image, we serve customers with the principle of "preferential prices, good service, reliable product quality" principle.
