Hunan New Diamond Construction Machinery Co., Ltd.
 |
| Place of Origin: | Hunan, China (Mainland) |
| Brand Name: | New Diamond |
| Certification: | ISO9001:2008 |
| Model Number: | GT series |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton packaging and wooden box packing |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | According to order quantity |
| Dia（mm）: | 102-152mm | NO.flusging Holes（Side）: | Nothing |
|---|---|---|---|
| NO.flusging Holes（Front）: | 2 | Weight (KG): | 8.2-16.4KG |
| Material: | Alloy Steel | Button Shape: | Spherical/Ballistic/parabolic/sharp/falt Bottons |
| High Light: | carbide button bits,retrac button bit |
||

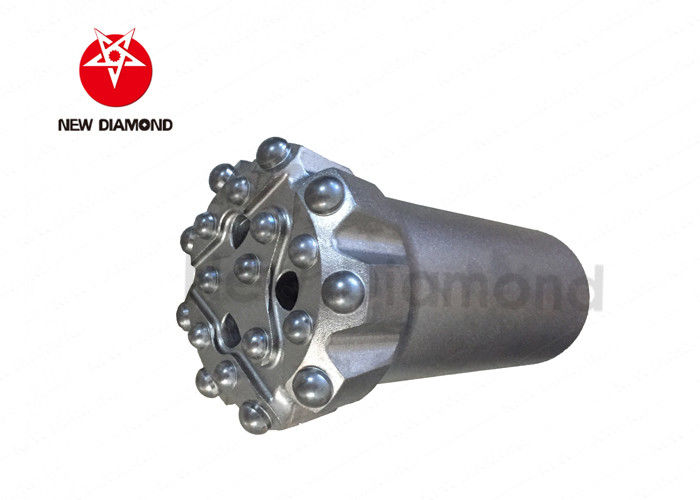

Description
The use of high quality steel and hard alloy as raw materials, through a special heat treatment process, ball tooth bit can reach under the hardness strong rock excavation, and to reduce the energy loss in the transmission process, tooth uniform force is not easy to drop off the teeth and teeth, so that impact the energy to focus on the rock to reach the purpose of high efficiency driving.
Applications
It is mainly used in geological exploration, coal mine, water conservancy and hydropower, highway, railway, bridge, construction and so on.
Specifications
| Dia | Tip size(mm) | NO.flusging holes |
Weight (kg) Gauge |
||
| mm | Gauge | Front | Side | Front | |
| 102 | 8*13 | 6*12 | - | 2 | 8.2 |
| 115 | 8*13 | 6*13 | - | 2 | 10.1 |
| 127 | 8*14 | 7*14 | - | 2 | 11.3 |
| 152 | 8*18 | 8*16 | - | 2 | 15.9 |
| 102 | 8*13 | 6*12 | - | 2 | 8.1 |
| 115 | 8*13 | 6*13 | - | 2 | 10.0 |
| 127 | 8*14 | 7*14 | - | 2 | 11.2 |
| 152 | 8*18 | 8*16 | - | 2 | 15.8 |
| 102 | 8*13 | 6*12 | - | 2 | 8.5 |
| 115 | 8*13 | 6*13 | - | 2 | 10.4 |
| 127 | 8*14 | 7*14 | - | 2 | 11.6 |
| 152 | 8*18 | 8*16 | - | 2 | 15.9 |
| 102 | 8*13 | 6*12 | - | 2 | 8.7 |
| 115 | 8*13 | 6*13 | - | 2 | 10.6 |
| 127 | 8*14 | 7*14 | - | 2 | 11.8 |
| 152 | 8*18 | 8*16 | - | 2 | 16.2 |
| 102 | 8*13 | 6*12 | - | 2 | 8.8 |
| 115 | 8*13 | 6*13 | - | 2 | 10.9 |
| 127 | 8*14 | 7*14 | - | 2 | 11.7 |
| 152 | 8*18 | 8*16 | - | 2 | 16.6 |
| 102 | 8*13 | 6*12 | - | 2 | 8.7 |
| 115 | 8*13 | 6*13 | - | 2 | 10.6 |
| 127 | 8*14 | 7*14 | - | 2 | 11.6 |
| 152 | 8*18 | 8*16 | - | 2 | 16.4 |
Feature Advantage
1.Factory direct marketing: minimizing costs
2.quality assurance: professional heat treatment technology, high wear resistance.
3.inventory guarantee: stable inventory, product specifications, models rich.
4.after sales guarantee: after sales service system at night, rest assured.
The appearance of the picture is different from that of the actual product, and the actual product is the standard.
