Hunan New Diamond Construction Machinery Co., Ltd.
 |
| Place of Origin: | Hunan, China (Mainland) |
| Brand Name: | New Diamond |
| Certification: | ISO9001:2008 |
| Model Number: | GT60 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton packaging and wooden box packing |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | According to order quantity |
| Dia（mm）: | 115-127mm | NO.flusging Holes（Side）: | 0-4 |
|---|---|---|---|
| NO.flusging Holes（Front）: | 3-4 | Weight (KG): | 8.2-16.4KG |
| Material: | Alloy Steel | Button Shape: | Spherical/Ballistic/parabolic/sharp/falt Bottons |
| High Light: | carbide button bits,retrac button bit |
||

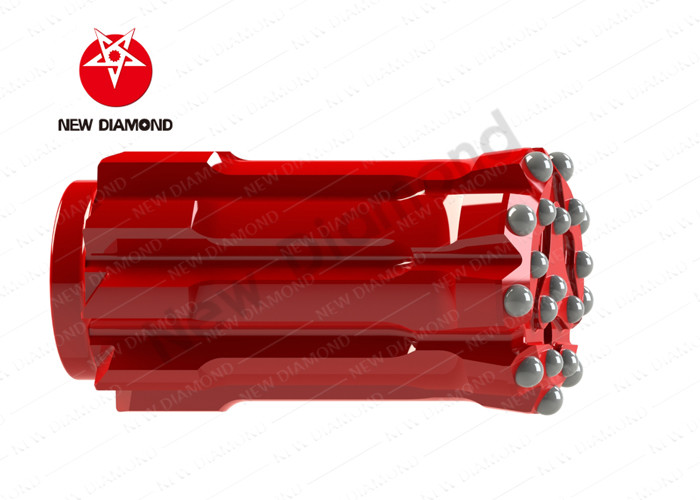

Retract Internal thread GT60 Top Hammer Drill Bits Cemented carbide steel
Raw material
Top Hammer Drill Bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.
Performance characteristics
1. According to different strata, high quality carbide ball teeth are used to drill holes quickly.
2. Bit has high corrosion resistance, high wear resistance and high thermal stability.
3. It is suitable for rock burst and blasting at high speed. It is good for working condition and high rock br eaking efficiency.
4.Custom designed head structure and carbide ball tooth shape can be customized according to customer requirements.
Applications
It is mainly used in geological exploration, coal mine, water conservancy and hydropower, highway, railway, bridge, construction and so on.
Specifications
| GT60 | Head shape |
Diameter (mm) |
Bit length (excluding alloy) |
NO.of flushing holes |
NO X button diamter |
Weight(KG) | |||
| Front | Side | Toothed | Gauge | Front | |||||
|
Retcact Bit |
Center Drop Bit |
102 | 185 | 4 | - |
Round Button+ Round Button |
8XØ14 | 4XØ13+2XØ12 | |
|
We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape. |
|||||||||
Feature Advantage
1. Factory direct marketing: minimizing costs
2. quality assurance: professional heat treatment technology, high wear resistance.
3. inventory guarantee: stable inventory, product specifications, models rich.
4. after sales guarantee: after sales service system at night, rest assured.
The appearance of the picture is different from that of the actual product, and the actual product is the standard.
|
Top Hammer Drill Bits
|
