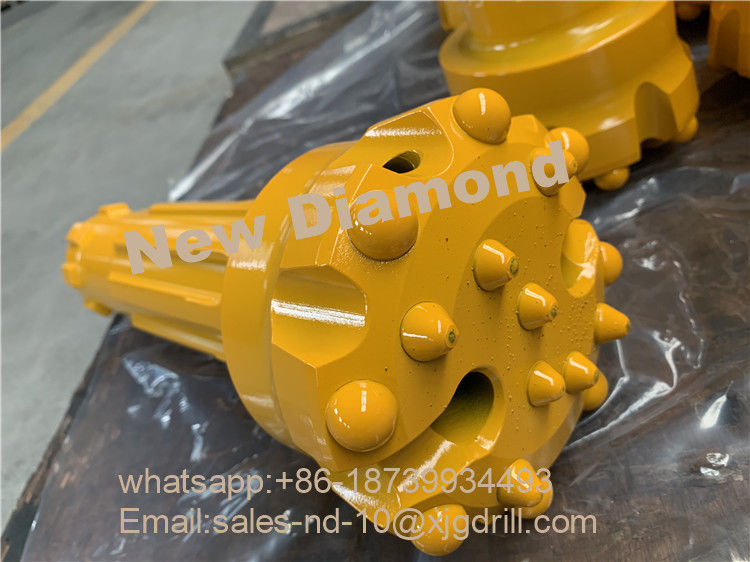

76MM-500MM DTH Hammer Bits Downhole Tools For Geothermal Drilling

76MM-500MM DTH Hammer Bits Downhole Tools For Geothermal Drilling

76MM-500MM DTH Hammer Bits Downhole Tools For Geothermal Drilling
76MM-500MM DTH Hammer Bits Downhole Tools For Geothermal Drilling
76MM-500MM DTH Hammer Bits Downhole Tools For Geothermal Drilling
Product Details:
Place of Origin: Hunan, China
Brand Name: New Diamond
Model Number: ND25 ND3.5 ND45 ND55 ND65 ND85 ND1120
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 70-2000usd
Delivery Time: 2-4weeks
Payment Terms: T/T, Western Union
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Type: Drill Bit Machine Type: Drilling Tool,Drilling Equipment,Downhole Tools
Material: Carbide,alloy Steel Processing Type: Forging
Use: Well Drilling,Coal Mining,Mining And Drilling,Quarrying Color: Blue,other Color Available,golden Or Request
Product Name: Dth Bits Application: Rock Drilling,Water Well Drilling And Rock Drilling,underground Mining,quarries
Advantage: High Wear Resistant,Widely Used Hard Rocks And Have Good Penetration,High-efficiency,high Performance And Factory Price,Direct Manufacturer Usage: Hole Drilling,Mining,Geothermal Drilling,Water Well Drilling
Button Shape: Spherical/Ballistic/parabolic/sharp/falt Bottons Advantages: High Quality And Factory Prices
Formation: Piston And Drive Chuck And Extenrnal Cylinder Shank Length: 174-490mm
Weight: 3.2-330KG Outer Diam: 76MM-500MM
High Light:

500MM DTH Hammer Bits

,

DTH Hammer Bits Downhole Tools

,

DTH Hammer Bits Geothermal Drilling

ND25 ND3.5 ND45 ND55 ND65 ND85 ND1120 ND DHD COP Hard Rock Drill Bit





Specifications





DHD Head shape Diameter
(mm)		 Number of vents NO X button diamter weight (KG)
Toothed Gauge Front
DHD3.5/ND35 Flat Face 90 2 Round+Ballistic Button 6XØ14 5XØ12 4.7
Flat Face 95 2 Round+Ballistic Button 6XØ14 5XØ12 4.8
Flat Face 100 2 Round+Ballistic Button 6XØ14 6XØ12 4.9
Flat Face 108 2 Round+Ballistic Button 8XØ13 6XØ12 5.4
We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.

DHD series Head shape Diameter
(mm)		 Number of vents Button qty.pcs*dia.mm weight (KG)
Button Type Gauge Front
DHD340/COP44/ND45 Convex Face 108 2 Round+Ballistic Button 7XØ16 6XØ14 7.85
Convex Face 115 2 Round+Ballistic Button 7XØ16 6XØ14 8.22
Convex Face 127 2 Round+Ballistic Button 8XØ16 4XØ14+3XØ13 8.88
Convex Face 130 2 Round+Ballistic Button 8XØ16 4XØ14+3XØ13 9.15
We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.

DHD series Head shape Diameter
(mm)		 Number of vents Button qty.pcs*dia.mm weight (KG)
Button Type Gauge Front
DHD350/COP54/ND55 Convex Face 140 2 Round+Ballistic Button 7XØ18 4XØ15+3XØ14 15.8
Flat Face 146 2 Round+Ballistic Button 8XØ18 8XØ14 16.5
Flat Face 152 2 Round+Ballistic Button 8XØ18 8XØ14 17
Concave Face 165 2 Spherical 8XØ18 4XØ16+4XØ14 18.9
Concave Face 178 2 Spherical 8XØ18 6XØ16+5XØ14 20.4
We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.

DHD series Head shape Diameter
(mm)		 Number of vents Button qty.pcs*dia.mm weight (KG)
Button Type Gauge Front
DHD360/COP64/ND65 Concave Face 154 2 Domed 8XØ18 4XØ16+4XØ15 22.5
Flat Face 165 2 Domed 8XØ18 8XØ16 23.6
Concave Face 171 2 Domed 8XØ18 6XØ16+4XØ15 25.2
Concave Face 178 2 Domed 8XØ18 6XØ16+5XØ15 26.1
Concave Face 190 3 Domed 9XØ18 6XØ16+5XØ15 29
Concave Face 203 2 Domed 10XØ18 8XØ16+6XØ15 30.4
We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.

DHD series Head shape Diameter
(mm)		 Number of vents Button qty.pcs*dia.mm weight (KG)
Button Type Gauge Front
DHD380/COP84/ND85 Concave Face 203 2 Domed 10XØ18 4XØ18+10XØ16 48.5
Concave Face 216 2 Domed 10XØ18 4XØ18+10XØ16 52.1
Concave Face 230 2 Domed 12XØ18 12XØ18+6XØ16 54.8
Concave Face 235 2 Domed 12XØ18 12XØ18+6XØ16 55.5
Concave Face 254 2 Domed 12XØ18 12XØ18+8XØ16 62.4
Concave Face 275 2 Domed 12XØ18 27XØ16 69
Concave Face 305 3 Domed 15XØ18 35XØ16 77.6
We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.

DHD series Head shape Diameter
(mm)		 Number of vents NO X button diamter weight (KG)
Toothed Gauge Front
DHD1120 Convex-concave Face 305 3 Domed 15XØ20 27XØ18+8XØ16 141.3
Convex-concave Face 311 3 Domed 15XØ20 27XØ18+8XØ16 141.6
Convex-concave Face 325 3 Domed 15XØ20 27XØ18+9XØ16 164.3
Convex-concave Face 350 4 Domed 16XØ20 32XØ18+13XØ16 169.1
Convex-concave Face 381 4 Domed 16XØ20 36XØ18+8XØ16 183
Convex-concave Face 400 4 Domed 16XØ20 40XØ18+28XØ16 194
Convex-concave Face 445 4 Domed 20XØ20 48XØ18+25XØ16 225.7
Convex-concave Face 500 4 Domed 24XØ20 90XØ18 331.2
We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.





1.The longer life of the drill
the alloy material, with longer using life which better than the similar products.

2.High Drilling Efficiency
the drill buttons is wear-resistant, so that the drill can always keep sharp, thus greatly improving the speed of the drilling.

3.The drilling speed is stable
the bit is scraped and cut to break the rock.

4.Good Performance
the New Diamond bit has strong wear resistance, good diameter protection and can make the cutting teeth be used efficiently.

5.The use of a wide range
the practice proves that the bit is suitable for carbonate rock, limestone, chalk, clay rock, siltstone, sandstone and other soft and hard (9 - grade drillability of rock, hard rock drilling), compared with normal bit, especially drilling in 6-8 grade rock the effect is particularly significant.

6. Item number includes:
COP32, IR3.5/COP34, DHD340/COP44, DHD350R/COP54,
DHD360/COP64, DHD380/COP84, DHD1120...

76MM-500MM DTH Hammer Bits Downhole Tools For Geothermal Drilling 0

DHD3.5/ND35

76MM-500MM DTH Hammer Bits Downhole Tools For Geothermal Drilling 1



DHD340/COP44/ND45

76MM-500MM DTH Hammer Bits Downhole Tools For Geothermal Drilling 2



DHD350/COP54/ND55

76MM-500MM DTH Hammer Bits Downhole Tools For Geothermal Drilling 3



DHD360/COP64/ND65

76MM-500MM DTH Hammer Bits Downhole Tools For Geothermal Drilling 4



DHD380/COP84/ND85

76MM-500MM DTH Hammer Bits Downhole Tools For Geothermal Drilling 5
