Home ProductsDTH Hammer Bits

Drilling Tools ND35 DHD3.5 IR3.5 95mm 108mm DTH Hammer Bits

Drilling Tools ND35 DHD3.5 IR3.5 95mm 108mm DTH Hammer Bits

Drilling Tools ND35 DHD3.5 IR3.5 95mm 108mm DTH Hammer Bits
Drilling Tools ND35 DHD3.5 IR3.5 95mm 108mm DTH Hammer Bits
Drilling Tools ND35 DHD3.5 IR3.5 95mm 108mm DTH Hammer Bits
Product Details:
Place of Origin: Hunan, China
Brand Name: New Diamond
Model Number: DHD3.5
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 90-150usd
Delivery Time: 2-4weeks
Payment Terms: T/T, Western Union
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Type: Drill Bit Machine Type: Drilling Tool,Drilling Equipment,Downhole Tools
Material: Carbide,alloy Steel Processing Type: Forging
Use: Well Drilling,Coal Mining,Mining And Drilling,Quarrying Color: Blue,other Color Available,golden Or Request
Product Name: Dth Bits Application: Rock Drilling,Water Well Drilling And Rock Drilling,underground Mining,quarries
Advantage: High Wear Resistant,Widely Used Hard Rocks And Have Good Penetration,High-efficiency,high Performance And Factory Price,Direct Manufacturer Usage: Hole Drilling,Mining,Geothermal Drilling,Water Well Drilling
Button Shape: Spherical/Ballistic/parabolic/sharp/falt Bottons Advantages: High Quality And Factory Prices
Formation: Piston And Drive Chuck And Extenrnal Cylinder Shank Length: 180mm
Weight: 4-6KG Outer Diam: 90mm, 95mm,100mm, 108mm
High Light:

108mm DTH Hammer Bits

,

DHD3.5 DTH Hammer Bits

,

Drilling Tools DTH Hammer Bits

Drilling Tools ND35 DHD3.5 IR3.5 95mm108mm DTH Hammer Bits





Specifications



DHD Head shape

Diameter

(mm)

Number of vents NO X button diamter weight (KG)
Toothed Gauge Front



DHD3.5

Flat Face Bit 90 2 Round Button+Ballistic Button 6XØ14 5XØ12 4.7
Flat Face Bit 95 2 Round Button+Ballistic Button 6XØ14 5XØ12 4.8
Flat Face Bit 100 2 Round Button+Ballistic Button 6XØ14 5XØ12 4.9
Flat Face Bit 108 2 Round Button+Ballistic Button 8XØ13 5XØ12 5.4
We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.



Applications

Widely used in mines, quarries, earthworks and other engineering drilling blasting hole, guardrail hole,mountain reinforcement, anchorage and other engineering holes, geothermal exploration hole, Well bore and other fields.


Feature Advantage

1. Long life span: the wear-resist of tungsten carbides is 10-20 times higher compared with other similar materials, which greatly extends the life of the carbide bits;
2. High drilling efficiency: the high grade hardness of the carbides can always stay sharp, which could increase the drilling speeds too;
3. New Diamond's bits are widely used in different rock formations like carbonate rock,limestone,chalk rock, clay rock,siltstone and sandstone;
4. It can greatly reduce the drilling cost, because of its high drilling speed and life span, which reduces the times to changes bits in the drilling service.



The appearance of the picture is different from that of the actual product, and the actual product is the standard.

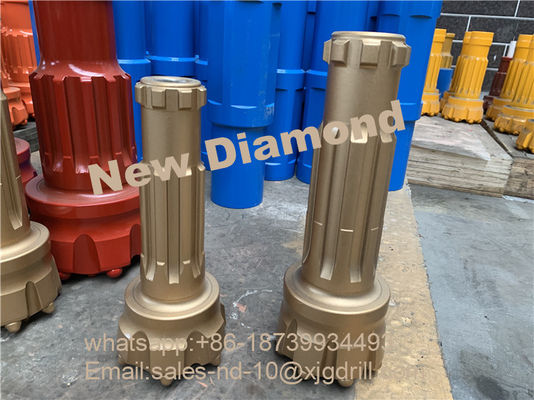

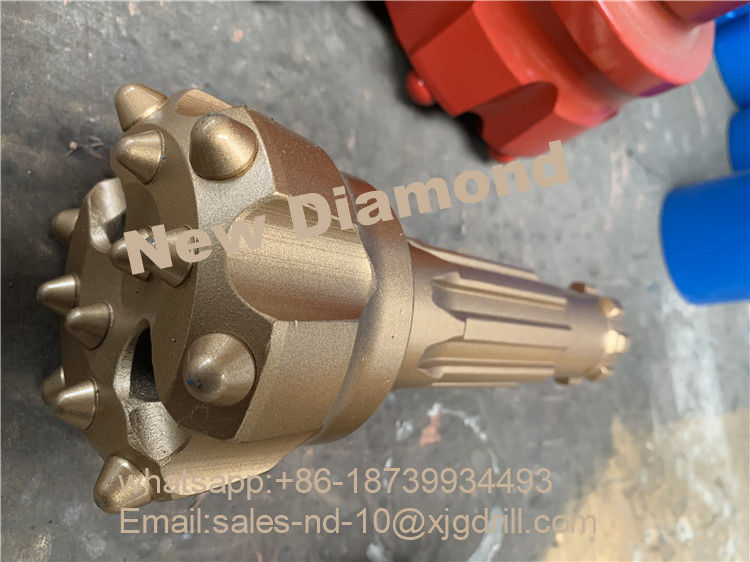

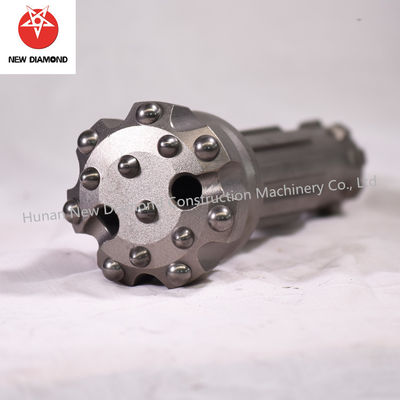

Drilling Tools ND35 DHD3.5 IR3.5 95mm 108mm DTH Hammer Bits 0Drilling Tools ND35 DHD3.5 IR3.5 95mm 108mm DTH Hammer Bits 1Drilling Tools ND35 DHD3.5 IR3.5 95mm 108mm DTH Hammer Bits 2
