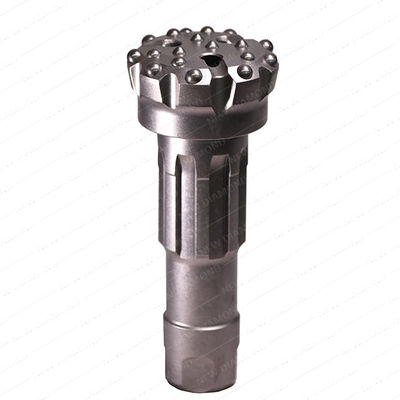

6inch Dhd360 165mm DTH Hammer Bits With Concave Face

6inch Dhd360 165mm DTH Hammer Bits With Concave Face

6inch Dhd360 165mm DTH Hammer Bits With Concave Face
6inch Dhd360 165mm DTH Hammer Bits With Concave Face
6inch Dhd360 165mm DTH Hammer Bits With Concave Face
Product Details:
Place of Origin: Hunan, China
Brand Name: New Diamond
Certification: ISO9001:2008
Model Number: DHD360
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 2-4weeks
Payment Terms: T/T, Western Union
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Type: DTH Hammer Rock Drill Bit Machine Type: Drilling Tool,Drilling Equipment,Downhole Tools
Material: Carbide,alloy Steel Processing Type: Forging
Use: BoreWell Drilling,Coal Mining,Mining And Drilling,Quarrying Color: Blue,other Color Available,golden Or Request
Product Name: Dth Bits DHD360 Application: Rock Drilling,Water Well Drilling And Rock Drilling,underground Mining,quarries
Advantage: High Wear Resistant,Widely Used Hard Rocks And Have Good Penetration,High-efficiency,high Performance And Factory Price,Direct Manufacturer Usage: Hole Drilling,Mining,Geothermal Drilling,Water Well Drilling
Button Shape: Spherical/Ballistic/parabolic/sharp/falt Bottons Advantages: High Quality And Factory Prices
Formation: Piston And Drive Chuck And Extenrnal Cylinder Shank Length: 231 Mm
Weight: 27.3 Kg Head Diam: 171mm 203mm
High Light:

165mm DTH Hammer Bits

,

Dhd360 DTH Hammer Bits

,

6inch DTH Hammer Bits

Hard rock using 6 inch dth bit dhd360 165mm with concave face sphere button



Specifications

 DHD series Head shape

Diameter

mm

Number of vents Button qty.pcs*dia.mm weight (KG)
Button Type Gauge Front
DHD 360 dth hammer drill bit Concave Face 152 2 Spherical 8XØ18 4XØ16+4XØ15
Flat Face 165 2 Spherical 8XØ18 8XØ16 23
Concave Face 171 2 Spherical 8XØ18 6XØ16+4XØ15 24.4
Concave Face 178 2 Spherical 8XØ18 6XØ16+5XØ15 25.3
  Concave Face 190 2 Spherical 9XØ18 6XØ16+5XØ15 26.5
  Concave Face 203 2 Spherical 10XØ18 8XØ16+6XØ15 29.7
WE can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.




1.10 years manufacturing experience;
2. Certificate: ISO9001:2008
3. Material: Carbide



Applications

The New Diamond manufactured DHD 360 171mm 203mm is widely used in geological exploration, coal mine, water well drilling, borewell drilling, highway, railway, bridge, construction, mining, quarry, Civil engineering, ore mining,Dimension stone industry and so on.



Feature Advantage

1. Long life span: the wear-resist of tungsten carbides is 10-20 times higher compared with other similar materials, which greatly extends the life of the carbide bits;
2. High drilling efficiency: the high grade hardness of the carbides can always stay sharp, which could increase the drilling speeds too;
3. Stable drilling speed: the bit is scraped and cut to break the rock.
4. Good performance: strong wear resistance, good diameter protection which will make the cutting teeth more efficiently.

5.Lower cost.



The appearance of the picture is different from that of the actual product, and the actual product is the standard.
