Hunan New Diamond Construction Machinery Co., Ltd.

|
| Place of Origin: | Hunan, China (Mainland) |
| Brand Name: | New Diamond |
| Certification: | ISO9001:2008 |
| Model Number: | SP883 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton packaging and wooden box packing |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | According to order quantity |
| Diameter (mm): | 203-254mm | No Head Length(mm): | 270mm |
|---|---|---|---|
| Number Of Vents: | 2 | Head Shape: | Flat Face Bit/Concave Face/Convex Face |
| Material: | Alloy Steel | Spline Key Number: | 12 |
| High Light: | hard rock drill bits,ballistic button bits,SP883 Shank Button Bits |
||

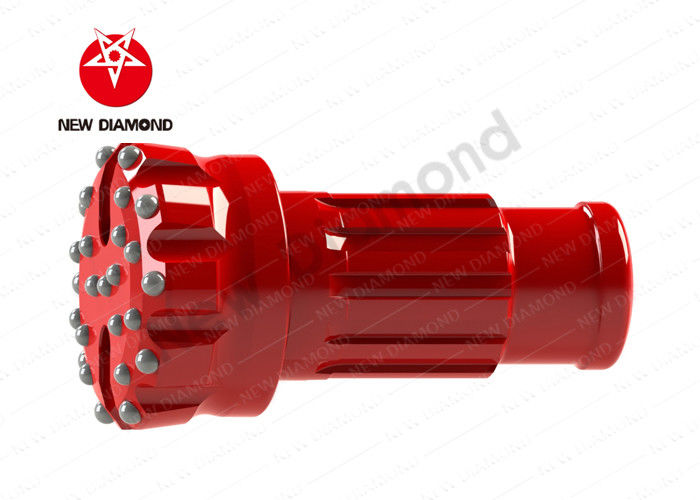

SP883 Shank Button Bits Rock Drilling For DTH Drilling Cemented Carbide Steel
Description
Hunan New Diamond offers top quality DTH hammers and bits which have been tested in the hardest rock formation. Our bits use quality hardened steel alloy for the bit body and premium quality tungsten carbide buttons. With superb performance and long life span. Our bits won high reputation among our customers.
1. Button Shape: Spherical,Semi-ballistic,Ballistic.
2. Durable performance, wear resistant and withstanding large impacting force.
3. Long life span.
5. Fast delivery time.
Applications
The medium-deep hole blasting has been gradually implemented in the mine, so it is inseparable from the DTH drilling tool. Compared with hand wind drills, whether it is safety, reducing the labor intensity of workers, improving the working environment, or increasing rock drilling rate, production efficiency, and increasing enterprise efficiency, down-drilling tools have advantages that are unmatched by hand drills.
Specifications
| SP |
Head shape |
Diameter (mm) |
Number of vents |
NO X button diamter |
weight (KG) |
||
| Toothed | Gauge | Toothed | |||||
|
SP883 |
Concave Face |
203 | 2 |
Round Button |
10XØ18 | 4XØ18+10XØ16 | |
|
Concave Face |
216 | 2 | Round Button | 10XØ18 | 4XØ18+10XØ16 | ||
|
Convex concave |
254 | 2 | Round Button | 12XØ18 | 8XØ18+18XØ16 | ||
|
We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape. |
|||||||
1. Price commitment: in order to ensure the high reliability of products, raw material selection are usinggrapefruit brand products; under the same competitive conditions, and not to reduce product technicalperformance on the basis of sincerity at a favorable price to customers.
2. Quality commitment: product manufacturing and testing have quality records and inspection data; the performance of the product can withstand customer inspection.
3. Customer service: in order to create new diamond brand, enhance the visibility of enterprises,establish corporate image, we serve customers with the principle of "preferential prices, good service, reliableproduct quality" principle.
