Hunan New Diamond Construction Machinery Co., Ltd.
 |
| Place of Origin: | Hunan, China (Mainland) |
| Brand Name: | New Diamond |
| Certification: | ISO9001:2008 |
| Model Number: | GT60 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton packaging and wooden box packing |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | According to order quantity |
| Type: | Drill Bit | Material: | Alloy Steel |
|---|---|---|---|
| Use: | Well Drilling | Color: | Required |
| Bit Face: | Center Drop/Flat/convex/concave/double Gauge Face Bits | Usage: | Quarrying& Ore Mining& Well Drilling |
| High Light: | top hammer drilling tool,retrac button bit |
||

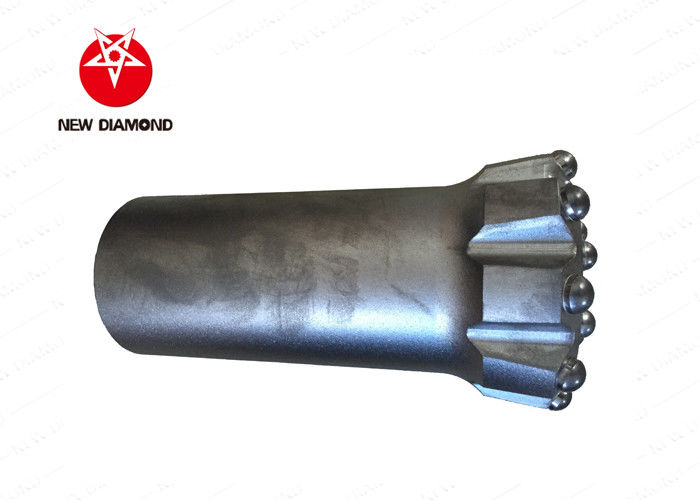

Description
Thread button drill bits mine drilling bit adopt high quality steel and tungsten carbide to ensure product quality. With superior wear resistance and impact toughness, our button drill bit is very popular at home and abroad.
Thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heattreatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss ofenergy while drilling the rocks. Besides, we can design customized thread button drill bits according todifferent drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rockand hard rock.
Applications
Widely used in mines, quarries, earthworks and other engineering drilling blasting hole, guardrail hole,mountain reinforcement, anchorage and other engineering holes, geothermal exploration hole, Well bore andother fields.
Specifications
|
Dia
|
Tip size(mm)
|
NO.flusging holes
|
Weight
(kg)
|
||
|
mm
|
Gauge
|
Front
|
Side
|
Front
|
|
|
102
|
8*13
|
6*12
|
-
|
2
|
8.2
|
|
115
|
8*13
|
6*13
|
-
|
2
|
10.1
|
|
127
|
8*14
|
7*14
|
-
|
2
|
11.3
|
|
152
|
8*18
|
8*16
|
-
|
2
|
15.9
|
|
102
|
8*13
|
6*12
|
-
|
2
|
8.1
|
|
115
|
8*13
|
6*13
|
-
|
2
|
10.0
|
|
127
|
8*14
|
7*14
|
-
|
2
|
11.2
|
|
152
|
8*18
|
8*16
|
-
|
2
|
15.8
|
|
102
|
8*13
|
6*12
|
-
|
2
|
8.5
|
|
115
|
8*13
|
6*13
|
-
|
2
|
10.4
|
|
127
|
8*14
|
7*14
|
-
|
2
|
11.6
|
|
152
|
8*18
|
8*16
|
-
|
2
|
15.9
|
|
102
|
8*13
|
6*12
|
-
|
2
|
8.7
|
|
115
|
8*13
|
6*13
|
-
|
2
|
10.6
|
|
127
|
8*14
|
7*14
|
-
|
2
|
11.8
|
|
152
|
8*18
|
8*16
|
-
|
2
|
16.2
|
|
102
|
8*13
|
6*12
|
-
|
2
|
8.8
|
|
115
|
8*13
|
6*13
|
-
|
2
|
10.9
|
|
127
|
8*14
|
7*14
|
-
|
2
|
11.7
|
|
152
|
8*18
|
8*16
|
-
|
2
|
16.6
|
|
102
|
8*13
|
6*12
|
-
|
2
|
8.7
|
|
115
|
8*13
|
6*13
|
-
|
2
|
10.6
|
|
127
|
8*14
|
7*14
|
-
|
2
|
11.6
|
|
152
|
8*18
|
8*16
|
-
|
2
|
16.4 |
Feature Advantage
Advantages:
Compared with the oversea brands, our advantages are bellowing:
a. Our products can match over 95% against the original products
b. Price are competitive against the famous brands and best quality against the small factory
About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2. We have advanced technology and equipment.
3. Our technician has more than 13 year’s professional working experience.
4. Rock drilling tools are exported throughout the world.
The appearance of the picture is different from that of the actual product, and the actual product is the standard.
