Hunan New Diamond Construction Machinery Co., Ltd.

|
| Place of Origin: | Hunan, China (Mainland) |
| Brand Name: | New Diamond |
| Certification: | ISO9001:2008 |
| Model Number: | ND65 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton packaging and wooden box packing |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | According to order quantity |
| Weight(KG): | 22-29.5KG | Processing Type: | Forging |
|---|---|---|---|
| THE Drill Head Diameter(mm): | 152-203mm | Spline Key Number: | 8 |
| Bit Face: | Center Drop/Flat/convex/concave/double Gauge Face Bits | NO.Air Holes: | 2 |
| High Light: | hard rock drill bits,ballistic button bits,ND65 Air Hammer Drill Bits |
||

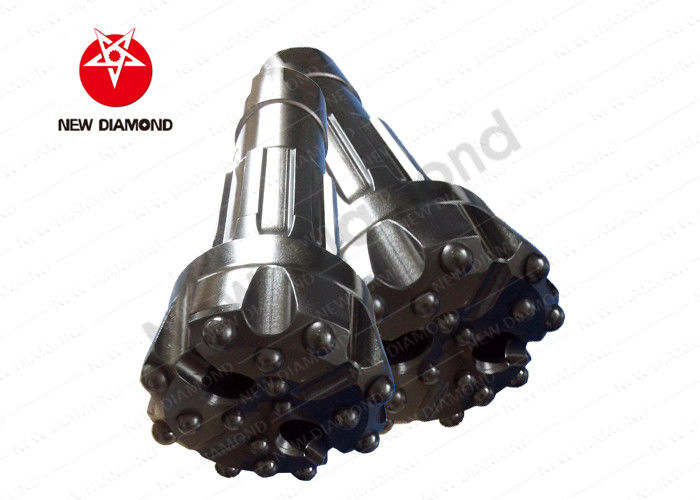

ND65 Rock / Air Hammer Drill Bits , DTH Hammer Button Bits For Water Conservancy
Description
Hunan New Diamond offers top quality DTH hammers and bits which have been tested in the hardest rock formation. Our bits use quality hardened steel alloy for the bit body and premium quality tungsten carbide buttons. With superb performance and long life span. Our bits won high reputation among our customers.
1. Button Shape: Spherical,Semi-ballistic,Ballistic.
2. Durable performance, wear resistant and withstanding large impacting force.
3. Long life span.
5. Fast delivery time.
Specifications
| THE Drill Head Diameter(mm) | Spline Key Number | NO.Air Holes | Gauge Buttons | Front Buttons | Weight(KG) |
| 152 | - | 2 | 8XØ18 | 7XØ16 | 22.0 |
| 165 | - | 2 | 8XØ18 | 8XØ16 | 26.0 |
| 175 | - | 2 | 8XØ18 | 10XØ16 | 27.0 |
| 190 | - | 2 | 10XØ18 | 12XØ16 | 28.5 |
| 203 | - | 2 | 10XØ18 | 13XØ16 | 29.5 |
| WE can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape. | |||||
1. Long life span: the wear-resist of tungsten carbides is 10-20 times higher compared with other similar materials, which greatly extends the life of the carbide bits;
2. High drilling efficiency: the high grade hardness of the carbides can always stay sharp, which could increase the drilling speeds too;
3. New Diamond's bits are widely used in different rock formations like carbonate rock,limestone,chalk rock, clay rock,siltstone and sandstone;
4. It can greatly reduce the drilling cost, because of its high drilling speed and life span, which reduces the times to changes bits in the drilling service.
