Hunan New Diamond Construction Machinery Co., Ltd.
 |
| Place of Origin: | Hunan, China (Mainland) |
| Brand Name: | New Diamond |
| Certification: | ISO9001:2008 |
| Model Number: | DHD1120/NSD12/NUMA120/NUMA125 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton packaging and wooden box packing |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | According to order quantity |
| Type: | Drill Bit | Processing Type: | Forging |
|---|---|---|---|
| Use: | Ore Mining | Color: | Required |
| Material: | Alloy Steel | Button Shape: | Spherical/Ballistic/parabolic/sharp/falt Bottons |
| High Light: | threaded button bits,button drill bit |
||

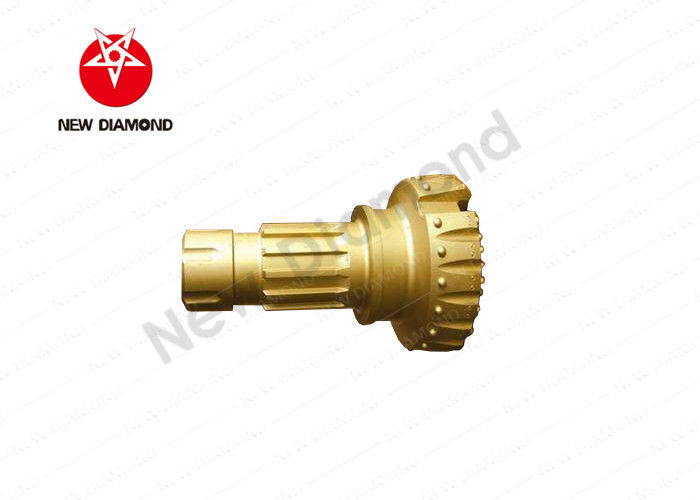

12 inch DTH Button Bits for High Air pressure bit
Description
We can't say we are No.1 in China, but we are trying to be the No.I in mind of our clients!
If you are interested in this kinds of products,welcome view our website.
All I want to tell you is:please have a "taste",just like as taste a cup of coffee, talk with our sales,then you'll know whether we are your idea supplier or not.
DTH Button Bits have powerful drilling capacity, great reliabiltiy and low operating cost. Advanced prodction techologies and skillful design, as well as high quality materials result in good performance, long service life, simplicity and endurance. Thus, our drilling tools are widely used for drilling and qurrying in mining industries and other construction fields.
Applications
It is mainly used in geological exploration, coal mine, water conservancy and hydropower, highway, railway, bridge, construction and so on.
Specifications
| 12” Middle Air Pressure DTH Bits | ||||||
| THE Drill Head Diameter(mm) | Spline Key Number | NO.Air Holes | Gauge Buttons | Front Buttons | Weight(KG) | |
| DHD1120 | 305 | - | 4 | 12XØ18 | 36XØ16 | 152.0 |
| 311 | - | 4 | 12XØ18 | 36XØ16 | 157.0 | |
| 330 | - | 4 | 16XØ18 | 42XØ16 | 165.0 | |
| 346 | - | 4 | 16XØ19 | 48XØ16 | 178.0 | |
| 381 | - | 4 | 16XØ19 | 48XØ16 | 198.0 | |
| NSD12 | 305 | - | 4 | 12XØ18 | 36XØ16 | 156.0 |
| 311 | - | 4 | 12XØ18 | 36XØ16 | 168.0 | |
| 330 | - | 4 | 16XØ18 | 42XØ16 | 180.0 | |
| 356 | - | 4 | 16XØ19 | 48XØ16 | 191.0 | |
| 381 | - | 4 | 16XØ19 | 48XØ16 | 200.0 | |
| NUMA120 | 305 | - | 4 | 12XØ18 | 36XØ16 | 152.0 |
| 311 | - | 4 | 12XØ18 | 36XØ16 | 158.0 | |
| 330 | - | 4 | 16XØ18 | 42XØ16 | 165.0 | |
| 356 | - | 4 | 16XØ19 | 48XØ16 | 178.0 | |
| 381 | - | 4 | 16XØ19 | 48XØ16 | 195.0 | |
| NUMA125 | 305 | - | 4 | 12XØ18 | 36XØ16 | 170.0 |
| 311 | - | 4 | 12XØ18 | 36XØ16 | 173.0 | |
| 330 | - | 4 | 16XØ18 | 42XØ16 | 182.0 | |
| 356 | - | 4 | 16XØ19 | 48XØ16 | 191.0 | |
| 381 | - | 4 | 16XØ19 | 48XØ16 | 200.0 | |
| WE can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape. | ||||||
1. Long life span: the wear-resist of tungsten carbides is 10-20 times higher compared with other similar materials, which greatly extends the life of the carbide bits;
2. High drilling efficiency: the high grade hardness of the carbides can always stay sharp, which could increase the drilling speeds too;
3. New Diamond's bits are widely used in different rock formations like carbonate rock,limestone,chalk rock, clay rock,siltstone and sandstone;
4. It can greatly reduce the drilling cost, because of its high drilling speed and life span, which reduces the times to changes bits in the drilling service.
The appearance of the picture is different from that of the actual product, and the actual product is the standard.
