Hunan New Diamond Construction Machinery Co., Ltd.
|Place of Origin:||Hunan, China (Mainland)|
|Brand Name:||New Diamond|
|Model Number:||NM series Hammer|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Carton packaging and wooden box packing|
|Delivery Time:||5-8 work days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||According to order quantity|
|Length(Without Bit):||1005mm-1338mm||External Diameter:||Ø99mm-Ø185mm|
|Hole Range:||Ø110-Ø254mm||Bit Shank:||NM4/NM5/NM6/NM8|
|Machine Type:||Drilling Equipment||Working Pressure:||1.2-3.0Mpa|
downhole drilling tools,
dth drilling tools,

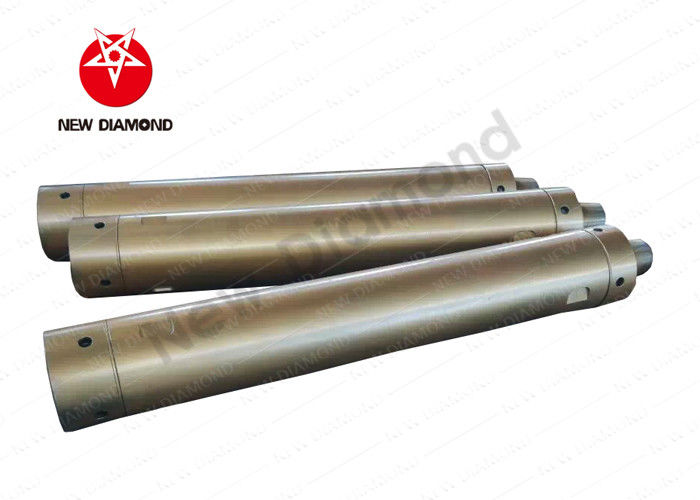

Rock Drill Accessories Borewell Hammer
DTH hammers are used for blast hole drilling and water well drilling project.Working with DTH drilling pipe and DTH drill bit, mainly applied in Mining,Marble quarry or well drilling and other construction projects.
Down the hole rock tools (drilling tools) are rock drilling equipment which takes compressed air as power source to partially transfer impact power into drilling holes. An air distributing device in a top hammer controls a piston to move back and forth. An impact device arranged in the front of the top hammer transfers the impact powderto a down-the-hole bit to crush rocks.
A, using the raw material of super coarse grain hard alloy, the alloy has been sintered under pressure to improve the hardness and toughness of the bit.
B, unique design, improve drilling speed, use significantly improve life.
C, select advanced steel to ensure that the overall performance of the bit is consistent.
D, after sale guarantee, to replace the bad goods package.
Widely used in mines, quarries, earthworks and other engineering drilling blasting hole, guardrail hole, mountain reinforcement, anchorage and other engineering holes, geothermal exploration hole, Well bore and other fields.
NM Series High Air Pressure DTH Hammers Without Foot Valve
|Connection Thread||API2 3”/8REG||
2 7”/8 IF
|Impact Rate at 17 Bar||30HZ||28HZ||25HZ||22HZ|
|Recommended Rotation Speed||25-40r/min||20-35r/min||20-30r/min||15-25r/min|
1 Price commitment: in order to ensure the high reliability of products, high-quality brand products are selected for raw material selection. Under the same competitive conditions, the products will be provided to customers at a favorable price without reducing the technical performance of products.
2 Quality commitment: the manufacture and inspection of the products have quality records and testing data, and the performance of the products can stand the customer's inspection.
3 Customer service: in order to create new Jingang brand, enhance corporate reputation and set up corporate image, we serve customers with the principle of "preferential price, considerate service and reliable product quality".
The appearance of the picture is different from that of the actual product, and the actual product is the standard.
|NM Series High Air Pressure DTH Hammers Without Foot Valve|
|2,“O” Ring Of Top Sub||0.10||0.015||0.015||0.015|
|11,“O” Ring Of Stop Ring||0.005||0.01||0.01||0.01|
Contact Person: Rick.liao
