Product Details:
Place of Origin: Hunan, China
Brand Name: New Diamond
Model Number: COP32 COP34 COP44 COP54 COP64 COP84
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 70-2000usd
Delivery Time: 2-4weeks
Payment Terms: T/T, Western Union
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Type: Drill Bit Machine Type: Drilling Tool,Drilling Equipment,Downhole Tools
Material: Carbide,alloy Steel Processing Type: Forging
Use: Well Drilling,Coal Mining,Mining And Drilling,Quarrying Color: Blue,other Color Available,golden Or Request
Product Name: Dth Bits Application: Rock Drilling,Water Well Drilling And Rock Drilling,underground Mining,quarries
Advantage: High Wear Resistant,Widely Used Hard Rocks And Have Good Penetration,High-efficiency,high Performance And Factory Price,Direct Manufacturer Usage: Hole Drilling,Mining,Geothermal Drilling,Water Well Drilling
Button Shape: Spherical/Ballistic/parabolic/sharp/falt Bottons Advantages: High Quality And Factory Prices
Formation: Piston And Drive Chuck And Extenrnal Cylinder Shank Length: 174-490mm
Weight: 3.2-330KG Outer Diam: 76MM-500MM
High Light:

DHD Bit

,

COP32 Mining Drilling Bit

,

Mining Drilling Tools DHD Bit

COP32 COP34 COP44 COP54 COP64 COP84 Mineria Drilling Tools DHD Bit


1.The longer life of the drill
the alloy material, with longer using life which better than the similar products.

2.High Drilling Efficiency
the drill buttons is wear-resistant, so that the drill can always keep sharp, thus greatly improving the speed of the drilling.

3.The drilling speed is stable
the bit is scraped and cut to break the rock.

4.Good Performance
the New Diamond bit has strong wear resistance, good diameter protection and can make the cutting teeth be used efficiently.

5.The use of a wide range
the practice proves that the bit is suitable for carbonate rock, limestone, chalk, clay rock, siltstone, sandstone and other soft and hard (9 - grade drillability of rock, hard rock drilling), compared with normal bit, especially drilling in 6-8 grade rock the effect is particularly significant.

6. Item number includes:
COP32, IR3.5/COP34, DHD340/COP44, DHD350R/COP54,
DHD360/COP64, DHD380/COP84, DHD1120...



Specifications



DHD Head shape

Diameter

(mm)

Number of vents NO X button diamter weight (KG)
Toothed Gauge Front



DHD3.5/ND35

Flat Face Bit 90 2 Round Button+Ballistic Button 6XØ14 5XØ12 4.7
Flat Face Bit 95 2 Round Button+Ballistic Button 6XØ14 5XØ12 4.8
Flat Face Bit 100 2 Round Button+Ballistic Button 6XØ14 5XØ12 4.9
Flat Face Bit 108 2 Round Button+Ballistic Button 8XØ13 5XØ12 5.4
We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.



DHD series Head shape

Diameter

mm

Number of vents Button qty.pcs*dia.mm weight (KG)
Button Type Gauge Front
DHD340/COP44/ND45 Concave Face 108 2 Spherical 7XØ16 6XØ14 7.85
Flat Face 115 2 Spherical 7XØ16 6XØ14 8.22
Concave Face 127 2 Spherical 8XØ16 4XØ14+3XØ13 8.88
Concave Face 130 2 Spherical 8XØ16 4XØ14+3XØ13 9.15
We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.



DHD series Head shape

Diameter

mm

Number of vents Button qty.pcs*dia.mm weight (KG)
Button Type Gauge Front
DHD350/COP54/ND55 Concave Face 140 2 Spherical 7XØ18 4XØ15+3XØ14 15.8
Concave Face 146 2 Spherical 8XØ18 8XØ14 16.5
Concave Face 152 2 Spherical 8XØ18 8XØ14 17
Concave Face 165 2 Spherical 8XØ18 4XØ16+4XØ14 18.9
Concave Face 178 2 Spherical 8XØ18 6XØ16+5XØ14 20.4

We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.



DHD series Head shape

Diameter

mm

Number of vents Button qty.pcs*dia.mm weight (KG)
Button Type Gauge Front
DHD360/COP64/ND65 Concave Face 152 2 Spherical 8XØ18 4XØ16+4XØ15
Flat Face 165 2 Spherical 8XØ18 8XØ16 23
Concave Face 171 2 Spherical 8XØ18 6XØ16+4XØ15 24.4
Concave Face 178 2 Spherical 8XØ18 6XØ16+5XØ15 25.3
  Concave Face 190 2 Spherical 9XØ18 6XØ16+5XØ15 26.5
  Concave Face 203 2 Spherical 10XØ18 8XØ16+6XØ15 29.7
We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.



DHD series Head shape Diameter
mm
Number of vents Button qty.pcs*dia.mm weight (KG)
Button Type Gauge Front
DHD380/COP84/ND85 Concave Face 203 2 Spherical 10XØ18 4XØ18+10XØ16 41.3
Concave Face 216 2 Spherical 10XØ18 4XØ18+10XØ16 45
Concave Face 230 2 Spherical 12XØ18 12XØ18+6XØ16 47.8
Concave Face 235 2 Spherical 12XØ18 12XØ18+6XØ16 48.4
Concave Face 254 2 Spherical 12XØ18 12XØ18+6XØ16 55.3
We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.



DHD series Head shape

Diameter

mm

Number of vents NO X button diamter weight (KG)
Toothed Gauge Front
DHD1120 Convex concave 350 4 Round Button 16XØ20 32XØ18+13XØ16 -
Convex concave 400 4 Round Button 16XØ20 60XØ18+8XØ16 -
Convex concave 500 4 Round Button 24XØ20 90XØ18 -
We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.

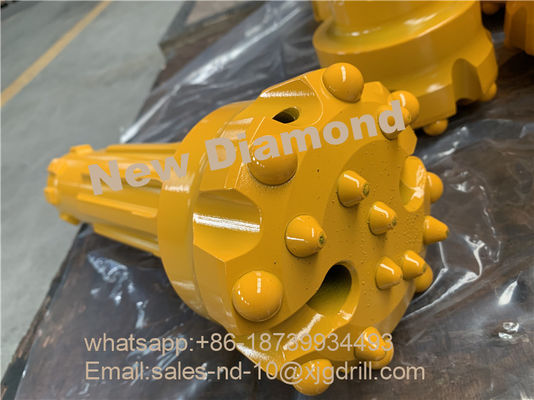

COP32 COP34 Mining Drilling Tools DHD Bit 0

DHD3.5/ND35

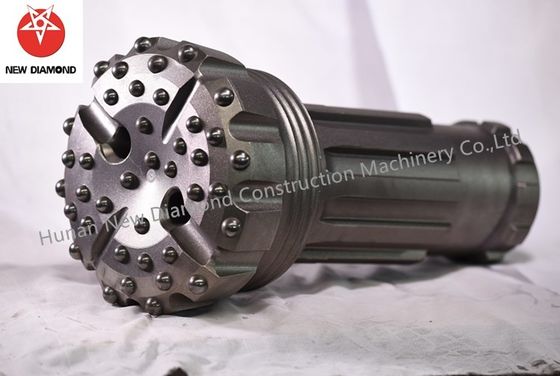

COP32 COP34 Mining Drilling Tools DHD Bit 1



DHD340/COP44/ND45

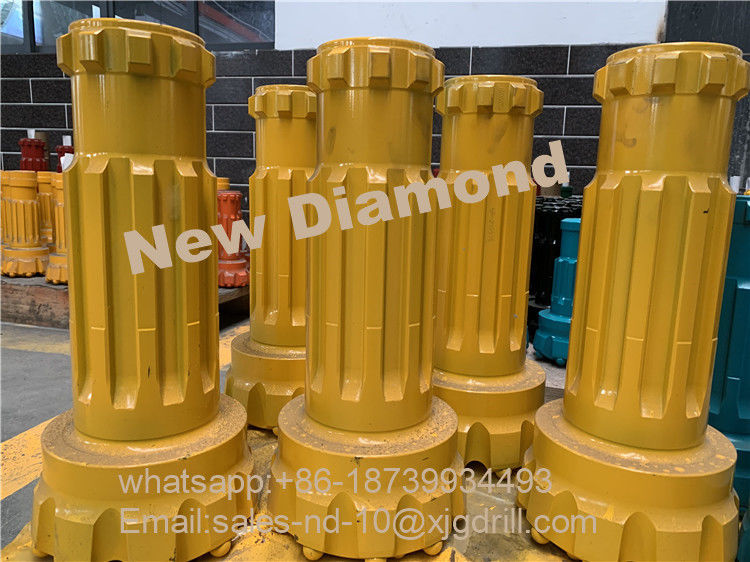

COP32 COP34 Mining Drilling Tools DHD Bit 2



DHD350/COP54/ND55

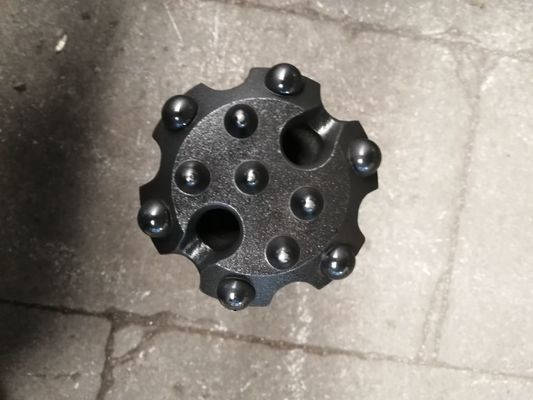

COP32 COP34 Mining Drilling Tools DHD Bit 3



DHD360/COP64/ND65

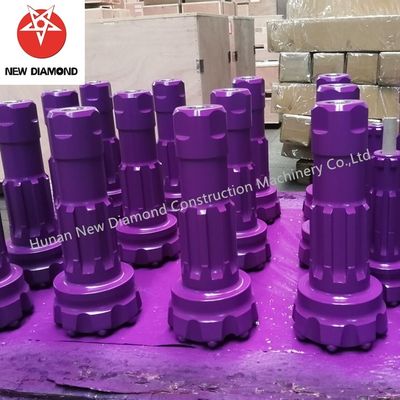

COP32 COP34 Mining Drilling Tools DHD Bit 4
