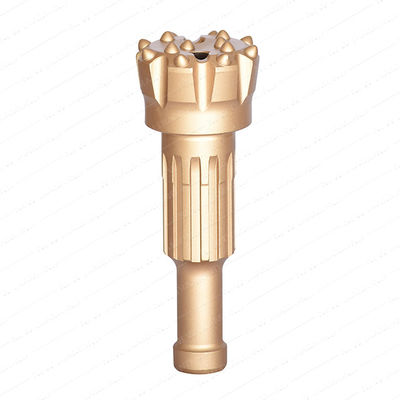

127mm 130mm Mission 40 Hard Rock Drill Bits

127mm 130mm Mission 40 Hard Rock Drill Bits

127mm 130mm Mission 40 Hard Rock Drill Bits
127mm 130mm Mission 40 Hard Rock Drill Bits
127mm 130mm Mission 40 Hard Rock Drill Bits
Product Details:
Place of Origin: Hunan, China
Brand Name: New Diamond
Model Number: Mission 40
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden case or as required
Delivery Time: 2-4weeks
Payment Terms: T/T, Western Union
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Type: DTH Hammer Rock Drill Bit Machine Type: Drilling Tool,Drilling Equipment,Downhole Tools
Material: Carbide,alloy Steel Processing Type: Forging
Use: Well Drilling,Coal Mining,Mining And Drilling,Quarrying Color: Blue,other Color Available,golden Or Request
Product Name: Dth Bits Mission40 Application: Rock Drilling,Water Well Drilling And Rock Drilling,underground Mining,quarries
Advantage: High Wear Resistant,Widely Used Hard Rocks And Have Good Penetration,High-efficiency,high Performance And Factory Price,Direct Manufacturer Usage: Hole Drilling,Mining,Geothermal Drilling,Water Well Drilling
Button Shape: Spherical/Ballistic/parabolic/sharp/falt Bottons Advantages: High Quality And Factory Prices
Shank Length: 228 Mm Weight: 8.2kg
Head Diam: 127 Mm 130mm
High Light:

Mission 40 Hard Rock Drill Bits

,

130mm Hard Rock Drill Bits

,

127mm Hard Rock Drill Bits

Mission 40 127mm 130mm Drill Bits For Hard Rock Drilling



1.10 years manufacturing experience;
2. Certificate: ISO9001:2008
3. Material: Carbide



we has a comprehensive range of DTH drill bits to match all conceivable applications. Each bit is made from quality alloy steel, and has been precision machined to produce a perfect body, heat treated to the required hardness, given surface compression for fatigue resistance, and fitted with precision buttons manufactured in-house. These are deigned for specific applications for all rock types, hardness's and condition. Bit life and rate of penetration are the most important criteria in selecting the right bit for a particular application.





Applications

The New Diamond dive drill is mainly used in geological exploration, coal mine, water well drilling, borewell drilling, highway, railway, bridge, construction, mining, quarry, Civil engineering, ore mining,Dimension stone industry and so on.



Specifications

Mission series Head shape

Diameter

mm

Number of vents Button qty.pcs*dia.mm weight (KG)
Button Type Gauge Front
Mission 40 Convex Face 108 2 Spherical 7XØ16 6XØ14 7.8
Convex Face 115 2 Spherical 7XØ16 6XØ14 8.2
Convex Face 127 2 Spherical 8XØ16 4XØ14+3XØ13 9.2
Convex Face 130 2 Spherical 8XØ16 4XØ14+3XØ 9.3
WE can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.



Feature Advantage

1. Long life span: the wear-resist of tungsten carbides is 10-20 times higher compared with other similar materials, which greatly extends the life of the carbide bits;
2. High drilling efficiency: the high grade hardness of the carbides can always stay sharp, which could increase the drilling speeds too;
3. Stable drilling speed:
the bit is scraped and cut to break the rock.
4. Good performance: strong wear resistance, good diameter protection which will make the cutting teeth more efficiently.

5. Lower cost.

127mm 130mm Mission 40 Hard Rock Drill Bits 0

About Us

Hunan New Diamond Construction Machinery Co.,Ltd is a professional and modern high-tech enterprise which engaged in researching and manufacturing rock drill and pneumatic tools. The team has specialized in drilling and pneumatic tools manufacturing since 1998, and until 2020 the company has nearly 700 employees and covers 110000m2 area in total. It mainly designs and manufactures DTH hammers, various drilling bits, drill pipes and all kinds o f other drilling tools. The products are widely applied to earth-moving engineering, mining exploitation, oil drilling, water well drill,pile foundation engineering and etc.
