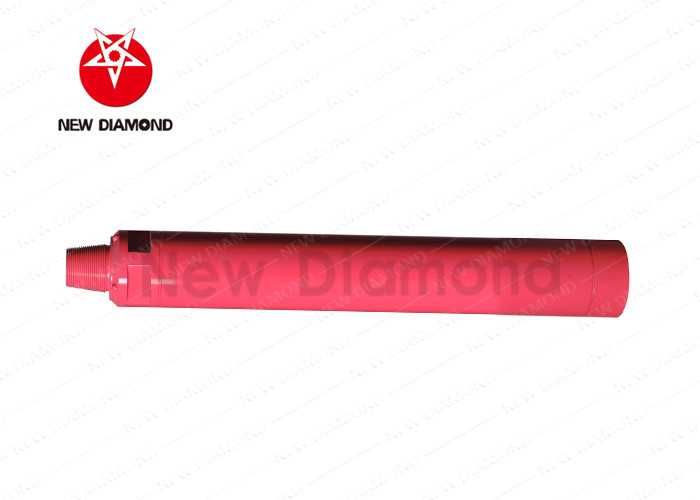

N100A Down The Hole Hammer / Downhole Drilling Tools Smooth Performance

N100A Down The Hole Hammer / Downhole Drilling Tools Smooth Performance

  • N100A Down The Hole Hammer / Downhole Drilling Tools Smooth Performance
N100A Down The Hole Hammer / Downhole Drilling Tools Smooth Performance
Product Details:
Place of Origin: Hunan, China (Mainland)
Brand Name: New Diamond
Certification: ISO9001:2008
Model Number: N series DTH hammer
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton packaging and wooden box packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: According to order quantity
Contact Now
Detailed Product Description
Length(Without Bit): 1545mm Weight(Without Bit): 305.00kg
External Diameter: Ø226mm Working Pressure: 2.0-3.5Mpa
Air Consumption: 1.0Mpa:22.0m³/min/1.8Mpa:40.0m³/min/2.4Mpa:65.0m³/min Material: Alloy Steel
High Light:

rock mining tools

,

oil drilling tool

N100A High Pressure Down The Hole Hammer



Description

1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure of DTH hammer designed according to newest rock drilling theory.

2. Smooth performance and long service life of DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.

3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.

4. Easy to depart bit from hammer due to multi—head thread connecting chuck and cylinder of hammer.

5. Interchangeable with DTH bit and drill pipe.



Applications

Widely used in mines, quarries, earthworks and other engineering drilling blasting hole, guardrail hole, mountain reinforcement, anchorage and other engineering holes,geothermal exploration hole, Well bore and other fields.



Specifications



N100A Technical Data

Length(Without Bit)

N100A

1545mm

Weight(Without Bit)

305.00kg

External Diameter

Ø226mm

Bit Shank

NUMA100

Hole Range

Ø254-Ø311mm

Connection Thread

API4 1/2REG

API5 1”/2REG

Working Pressure

2.0-3.5Mpa

Impact Rate at 17 Bar

20HZ

Recommended Rotation Speed

15-25r/min

Air Consumption

1.0Mpa:22.0m³/min

1.8Mpa:40.0m³/min

2.4Mpa:65.0m³/min



Feature Advantage

1. Price commitment: in order to ensure the high reliability of products, raw material selection are using grapefruit brand products; under the same competitive conditions,and not to reduce product technical performance on the basis of sincerity at a favorable price to customers.
2. Quality commitment: product manufacturing and testing have quality records and inspection data; the performance of the product can withstand customer inspection.

3. Customer service: in order to create new diamond brand, enhance the visibility of enterprises, establish corporate image, we serve customers with the principle of "preferential prices, good service, reliable product quality" principle.





Advantages:

Our DTH hammer and bits has following advantages:

Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to inner structure of DTH hammer designed according to newest rock drilling theory.

Smooth performance and long service life of DTH hammer due to high quality alloy steel materials and advanced
processing technology adapted.

Low problem rate and easy to maintenance due to simple , reliable and easy assemble and disassemble inner structure of hammer.

Easy to depart bit from hammer due to multi-head thread connecting chuck and cylinder of hammer.

Interchangeable with DTH bit and dill pipe manufactured by many brands all over the world.
