Hunan New Diamond Construction Machinery Co., Ltd.
 |
| Place of Origin: | Hunan, China (Mainland) |
| Brand Name: | New Diamond |
| Certification: | ISO9001:2008 |
| Model Number: | Reverse Circulation Hammer |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton packaging and wooden box packing |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | According to order quantity |
| Type: | Hammer | Processing Type: | Forging |
|---|---|---|---|
| Use: | Ore Mining | Color: | Required |
| Machine Type: | Drilling Equipment | Material: | Alloy Steel |
| High Light: | rc hammer,rock quarry tools |
||
Description

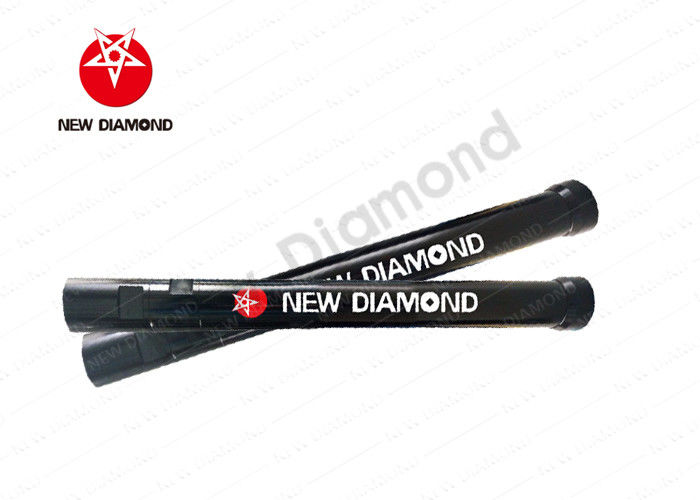

1. Based on previous experience of ordinary hammers, combined with the features of reverse circulation hammer, optimized internal structure and ideal energy transfer, thus ensuring the series of hammers drilling with fast, smooth and continuous sampling.
2. The internal structure is very simple with components of high rigidity, thus ensuring long life and easy maintenance of the hammer.
3. The collection tube adopts an integrative design and can be replaced without disassembling the hammer. With carburizing treatment, it has good abrasive resistance.
4. Equipped with bits designed with patent. Simply by replacing the drill bit, the same hammer
can drill holes of different sizes ensuring that the sample is not contaminated.
5. In difficult conditions such as loose soil, hard rock and plenty of water exists, sampling can be done well.
Applications
Our DTH hammer are widely applied to open pit and underground mining to drill blasting holes, drainage holes, ventilation holes, center holes or blasting holes of raising boring, pipe holes and other deep holesin all various strength rocks, such as quarry exploitation, earthwork projects, water-well, constructionsand so on.
Specifications
| Item Description | Weight(kg) | |||
| NRC45 | NRC55 | NRC65 | NRC52 | |
| Internal Ciclip | 0.03 | 0.04 | 0.05 | 0.04 |
| Air Screen | 0.35 | 0.44 | 0.65 | 0.44 |
| Top Sub | 6.50 | 9.65 | 20.00 | 9.65 |
| “O”Ring | 0.01 | 0.02 | 0.02 | 0.02 |
| Sample Tube | 5.10 | 6.72 | 12.50 | 6.75 |
| Check Valve | 0.25 | 0.68 | 0.85 | 0.68 |
| Spring | 0.04 | 0.12 | 0.10 | 0.12 |
| “O”Ring | 0.01 | 0.02 | 0.02 | 0.02 |
| Air Distributor | 0.85 | 1.48 | 3.50 | 1.48 |
| 10,“O”Ring | 0.02 | 0.01 | 0.02 | 0.01 |
| Internal Cylinder | 2.20 | 4.12 | 4.20 | 4.12 |
| Piston | 8.50 | 16.90 | 24.00 | 16.90 |
| External Cylinder | 14.50 | 19.50 | 32.00 | 21.50 |
| Guided Sleeve | 1.20 | 0.90 | 5.50 | 1.90 |
| “O”Ring | - | - | - | 0.02 |
| Stop “O”Ring | - | - | - | 0.01 |
| Stop Ring | - | - | - | 0.32 |
| Sharout | - | - | - | 1.86 |
| Drive Chuck | 3.20 | 5.65 | 6.50 | 4.17 |
| Bit Retaining Pin | 0.01 | 0.15 | 0.30 | - |
| Drill Bit | 10.50 | 15.80 | 31.00 | 11.05 |
Feature Advantage
1. Price commitment: in order to ensure the high reliability of products, raw material selection are using grapefruit brand products; under the same competitive conditions,and not to reduce product technical performance on the basis of sincerity at a favorable price to customers.
2. Quality commitment: product manufacturing and testing have quality records and inspection data; the performance of the product can withstand customer inspection.
3. Customer service: in order to create new diamond brand, enhance the visibility of enterprises, establish corporate image, we serve customers with the principle of "preferential prices, good service, reliable product quality" principle.
Contact Person: Rick.liao
Tel: +8618692219720
