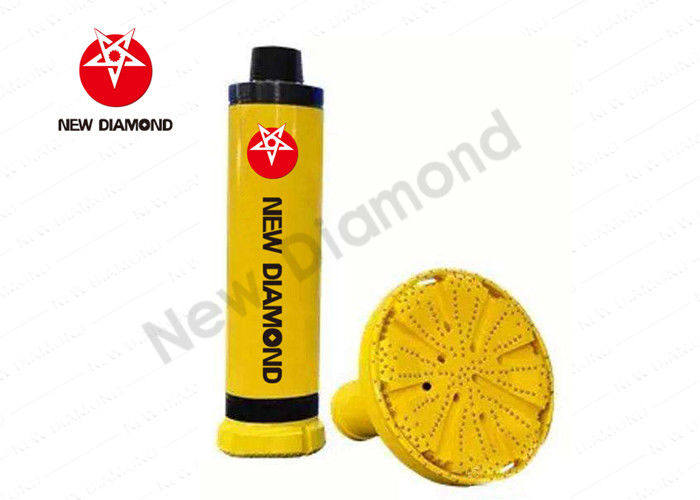

Big aperture Water Well Drilling Hammer for Cemented carbide with NQL series

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: New Diamond
Certification: ISO9001:2008
Model Number: NQL series
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton packaging and wooden box packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: According to order quantity
Contact Now
Detail Information
Type: Hammer Processing Type: Forging
Use: Ore Mining Color: Required
Machine Type: Drilling Equipment Usege: Mining&Construction&Water Well Drilling

Product Description

 Description


Widely used in geotechnical engineering to wear all kinds of hard in the hard, hard and other hard to drill tough rock. The low-pressure impactor is a valve type central exhaust impactor, which has a good effect of discharging rock powder, reduces the repeated crushing of the rock slag, reduces the wear of the drill bit, improves the drilling efficiency, and adopts a new rock drilling theory to design the interior of the impactor. The size of the structure makes the impactor get the ideal energy transmission, with a single impact power, faster rock drilling, and lower air consumption. The use of high-quality raw materials and advanced processing technology results in more stable performance and longer life. Disassembly easy, low failure, easy maintenance. It is suitable for blasting holes, landslide protection, dam site reinforcement, anchorage and other engineering holes, geothermal source air conditioning, hydrology, well bore and other fields in mines, quarries and roads.



External Diameter:99-203mm



Bit Shank:QL40QL50QL60QL80



Applications



Widely used in mines, quarries, earthworks and other engineering drilling blasting hole, guardrail hole, mountain reinforcement, anchorage and other engineering holes, geothermal exploration hole, Well bore and other fields.



Specifications


NQL Series High Air Pressure DTH Hammers With Foot Valve

Technical Data

Length(Without Bit) NQL4 NQL5 NQL6 NQL8
1097mm 1156mm 1212mm 1465mm
Weight(Without Bit) 41.00kg 73.00kg 95.00kg 182.00kg
External Diameter Ø99mm Ø126mm

Ø142mm Ø144mm

Ø146mm Ø148mm

Ø180mm
Bit Shank QI40 QI50 QI60 QI80
Hole Range Ø110-Ø135mm Ø135-Ø155mm Ø155-Ø190mm Ø195-Ø254mm
Connection Thread API2 3”/8REG

API3 1”/2REG

API2 7”/8REG

API3 1”/2REG

API2 7”/8REG

2 7”/8 IF

API4 1”/2REG
Working Pressure 1.2-2.0Mpa 1.3-2.3Mpa 1.5-2.5Mpa 1.5-3.0Mpa
Impact Rate at 17 Bar 27HZ 25HZ 23HZ 20HZ
Recommended Rotation Speed 25-40r/min 25-40r/min 20-30r/min 15-25r/min
Air Consumption

1.0Mpa:6.0m³/min

1.8Mpa:10.0m³/min

2.4Mpa:15.0m³/min

1.0Mpa:9.0m³/min

1.8Mpa:15.0m³/min

2.4Mpa:23.0m³/min

1.0Mpa:10.0m³/min

1.8Mpa:20.0m³/min

2.4Mpa:28.5m³/min

1.0Mpa:15.0m³/min

1.8Mpa:26.0m³/min

2.4Mpa:34.0m³/min



NQL Series High Air Pressure DTH Hammers Without Foot Valve

Technical Data

Length(Without Bit) NQL4A NQL5A NQL6A NQL8A NQL95A
1070mm 1090mm 1183mm 1330mm 1340mm
Weight(Without Bit) 40.00kg 67.00kg 90.00kg 171.00kg 203.00kg
External Diameter Ø99mm Ø126 mm Ø165mm Ø180/Ø185mm Ø203mm
Bit Shank QL40 QL50 QL600 QL80 QL80
Hole Range Ø110-Ø135mm Ø155-Ø203mm Ø155-Ø203mm Ø195-Ø254mm Ø216-Ø254mm
Connection Thread API2 3”/8REG

API2 3”/8REG

API3 1”/2REG

API2 7”/8REG

API3 1”/2REG API4 1”/2REG API4 1”/2REG
Working Pressure 1.2-2.0Mpa 1.3-2.3Mpa 1.5-2.5Mpa 1.5-3.0Mpa 1.8-3.0Mpa
Impact Rate at 17 Bar 30HZ 28HZ 25HZ 22HZ 22HZ
Recommended Rotation Speed 20-30r/min 20-35r/min 20-30r/min 15-25r/min 15-25r/min
Air Consumption

1.0Mpa:5.0m³/min

1.8Mpa:9.0m³/min

2.4Mpa:14.0m³/min

1.0Mpa:7.0m³/min

1.8Mpa:14.0m³/min

2.4Mpa:19.0m³/min

1.0Mpa:9.0m³/min

1.8Mpa:18.0m³/min

2.4Mpa:26.0m³/min

1.0Mpa:12.0m³/min

1.8Mpa:22.0m³/min

2.4Mpa:28.0m³/min

1.0Mpa:16.0m³/min

1.8Mpa:28.0m³/min

2.4Mpa:39.0m³/min




Feature Advantage
