Detailed Product Description
Type: Overburden Drilling System Machine Type: Drilling Equipment
Certification: API Material: Carbon Steel, High Quality Alloy Steel
Processing Type: Forging Use: Mining
High Light:

concentric drilling system

,

ring bit drilling system



Description


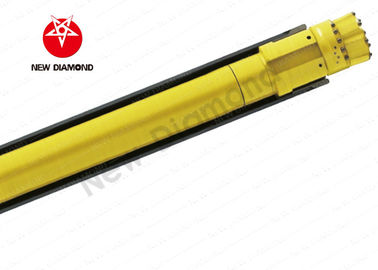

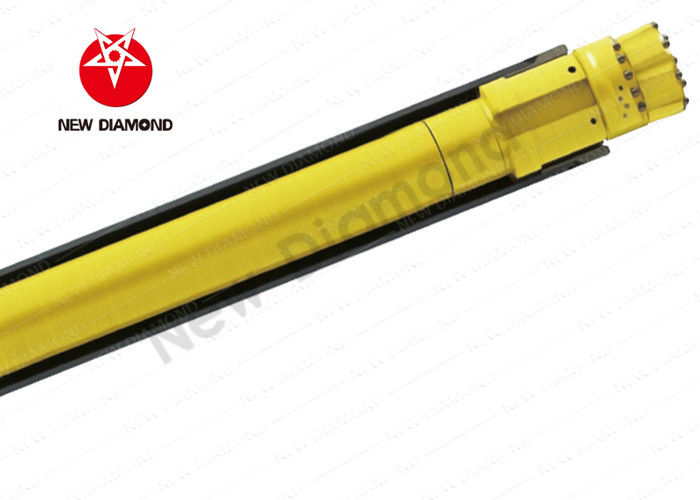

NEW DIAMOND Eccentric overburden casing drilling system:



Eccentric casing drilling bit is the most economical solutions because its ingenious reaming wing the bit is retrievable can be used at the next hole.This is particularly design for shallow holes, as is often the case in water well drilling, geothermal wells and for shallow micro-piling work. Eccentric casing drilling system is ideal for short holes in consolidated overburden. The component of Eccentric system consists of Pilot bits, Reamer bits, Guide device and casing shoe.



When drilling, the reamer bit will rotate out to enlarge the hole which enough for the casing tube slide down behind the reamer. When reached required depth,the drill pipe will drill to the reverse direction and the reamer bit will retract, it is allowing the whole drilling system to pass through the casing.



The below size of Eccentric systems which are available, and the special design is upon customer’s requirement:
Eccentric 90, Eccentric 114, Eccentric 140, Eccentric 165, Eccentric 190 and Eccentric 240


Applications


Widely used in mines, quarries, earthworks and other engineering drilling blasting hole, guardrail hole, mountain reinforcement, anchorage and other engineering holes,geothermal exploration hole, Well bore and other fields.



Specifications




 High Efficiency Overburden Drilling System , Foundation Drilling Tools For Industrial 0

Type ① Casing Tube ② Drill Pipe ③ Guide Sleeve ④ DTH-hammer ⑤ Casing Shop ⑥ Guide Device ⑦ Reamer ⑧ Pilot bit
NOD90 Maximun 115mm Connection Thread API2 3/8”Reg Effective length 174mm

ND35,

Cop32,

IR3.5,

NQL30

L3=90mm

L4=55mm

D3=101.7mm

D4=93mm

L1=35mm

L2=138mm

D1=92mm

D2=100mm

D5=91mm D6=90mm L6=59mm
O.D 76mm L5=70mm Gauge button 8 X Ф12
Wrench Flats 65mm Reaming Diameter 123mm Front button 6 X Ф10
Minmum 102mm
Reamer has 4XФ12 buttons
NOD115 Maximun 142mm Connection Thread API2 3/8”Reg Effective length 174mm

ND45,

Cop44,

NSD4,

DHD340A,

NQL40,

NM4

L3=76mm

L4=55mm

D3=127.5mm

D4=117mm

L1=48mm

L2=136mm

D1=115mm

D2=126mm

D5=114mm D6=114mm L6=67mm
L5=89mm
Gauge button 8 X Ф14
Front button 6 X Ф12
Reaming Diameter 152mm
O.D 76mm
Minmum: 128mm
Wrench Flats 65mm Reamer has 5XФ14 buttons
NOD140 Maximun 168mm Connection Thread API2 3/8”Reg Effective length 205mm

ND55,

Cop54,

NSD5,

DHD350R,

NQL50

L3=90mm

L4=63mm

D3=155.3mm

D4=143mm

L1=55mm

L2=160mm

D1=141mm

D2=154mm

D5=138mm D6=138mm L6=66mm
O.D 89mm L5=69.5mm Gauge button 8 X Ф16
Reaming Diameter 185mm
Minmum 155.40mm
Front button 8 X Ф14
Wrench Flats 65mm Reamer has 7XФ14 buttons
NOD165 Maximun 193.70mm Connection Thread: API2 1/2”Reg Effective length: 225mm

ND65,

Cop64,

NSD6,

DHD360,

NQL60

L3=95mm

L4=55mm

D3=181.5mm

D4=166mm

L1=61.5mm L2=181.5mm D1=165mm

D2=178mm

D5=164mm: D6=165.80mm L6=82.50mm
Gauge button 8 X Ф16
O.D 114mm L5=79.5mm
Reaming Diameter 211mm
Minmum 181mm Front button 8 X Ф16
Wrench Flats 65mm
Reamer has 7XФ14 buttons
NOD190 Maximun 219mm Connection Thread API2 1/2”Reg Effective length 225mm

ND65,

Cop64,

NSD6,

DHD360,

NQL60

L3=110mm

L4=70mm

D3=204.7mm

D4=193mm

L1=62.8mm L2=185mm D1=191mm D2=203mm D5=164mm D6=165.80mm L6=82.50mm
O.D 114mm L5=79.5mm
Gauge button 8 X Ф16
Reaming Diameter 211mm
Minmum 205mm
Front button 8 X Ф16
Wrench Flats 95mm Reamer has 7XФ14 buttons
NOD240 Maximun 273mm Connection Thread API2 1/2”Reg Effective length 343mm

ND85,

Cop84,

NSD8,

DHD380,

NQL80

L3=110mm

L4=65mm

D3=259mm

D4=241mm

L1=70mm L2=190mm D1=240mm D2=257mm D5=238mm D6=240mm L6=89.50mm
L5=100mm
Gauge button 12 X Ф18
O.D 114mm Reaming Diameter 308mm
Front button 32 X Ф16
Minmum 260.4mm
Reamer has 16XФ16 buttons
Wrench Flats 95mm
NOD280 Maximun: 324mm Connection Thread API2 1/2”Reg Effective length 305mm

NSD10,

NUMA100

L3=125mm

L4=75mm

D3=304mm

D4=281mm

L1=97mm L2=254mm D1=280mm D2=303mm D5=266mm D6=280mm L6=135mm
L5=120mm

Gauge

button

12 X Ф18
O.D 114mm
Reaming Diameter 378mm
Minmum 305mm Front button 27 X Ф160
Wrench Flats 95mm Reamer has 22XФ18 buttons









Feature Advantage


1. price commitment: in order to ensure the high reliability of products, high-quality brand products are selected for raw material selection. Under the same competitive conditions, no more products will be provided to customers at a favorable price, based on the reduction of the technical performance of products.



2. Quality commitment: product manufacturing and testing have quality records and inspection data; the performance of the product can withstand customer inspection.



3. Customer service: in order to create new diamond brand, enhance the visibility of enterprises,establish corporate image, we serve customers with the principle of "preferential prices, good service, reliable product quality"principle.



The appearance of the picture is different from that of the actual product, and the actual product is the standard.
