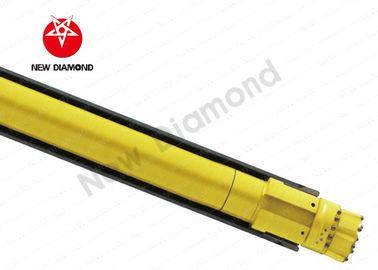

High Performance Ring Bit Drilling System For Earthworks Project , Alloy Steel Materials

Description

The symmetric drilling system is designed to drill and case a hole simultaneously through unstabled ground conditions. The driver bit incorporated with a satisficial ring or reusable ring makes a full face head design which significantly improves the penetration rate and hole straightness of drilling. The internal flushing grooves together with the built-in casing shoes gives a good seal to the button of the drilling hole, and thus minimising the disruption of the surronding of the drill hole.

Application Range: It is suitable for drilling water wells , geothermal wells , short mircopiles ,medium mini-type grouting hole of building , dam and harbour project .
1. Ring bit and casing shoe assembly is welded to casing prior to drilling. Lock the assembly into pilot bit with hammer. The pilot bit's upper shoulder engages the shoulder of the casing shoe.
2. Hammer's percussive energy is transferred through the pilot and ring bits, crushing rock . Part of impact energy advances casing.
3. On completion of drilling and casing , the drill string with pilot bit is retrieved by a slight reverse rotation to unlock the bayonet coupling . The ring bit stays in the hole , and can be recovered only if the casing is retrieved
4. Drilling continues to the desired depth in the bedrock using a conventional drilling.

When drilling, the reamer bit will rotate out to enlarge the hole which enough for the casing tube slide down behind the reamer. When reached required depth,the drill pipe will drill to the reverse direction and the reamer bit will retract, it is allowing the whole drilling system to pass through the casing.

The below size of Eccentric systems which are available, and the special design is upon customer’s requirement:
Eccentric 90, Eccentric 114, Eccentric 140, Eccentric 165, Eccentric 190 and Eccentric 240

Applications

Widely used in mines, quarries, earthworks and other engineering drilling blasting hole, guardrail hole, mountain reinforcement, anchorage and other engineering holes,geothermal exploration hole, Well bore and other fields.

Feature Advantage

1. price commitment: in order to ensure the high reliability of products, high-quality brand products are selected for raw material selection. Under the same competitive conditions, no more products will be provided to customers at a favorable price, based on the reduction of the technical performance of products.

2. Quality commitment: product manufacturing and testing have quality records and inspection data; the performance of the product can withstand customer inspection.

3. Customer service: in order to create new diamond brand, enhance the visibility of enterprises,establish corporate image, we serve customers with the principle of "preferential prices, good service, reliable product quality"principle.

The appearance of the picture is different from that of the actual product, and the actual product is the standard.
