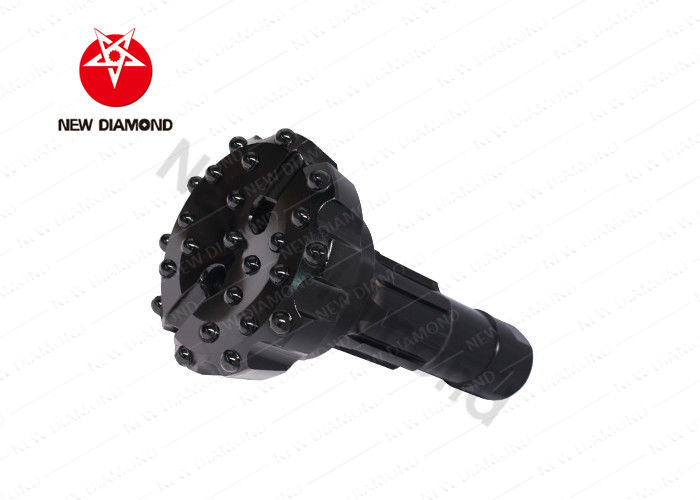

COP36 DTH Drill Bits For Water Well Drilling , DTH Hammer Bits Heat Insulation

COP36 DTH Drill Bits For Water Well Drilling , DTH Hammer Bits Heat Insulation

COP36 DTH Drill Bits For Water Well Drilling , DTH Hammer Bits Heat Insulation
COP36 DTH Drill Bits For Water Well Drilling , DTH Hammer Bits Heat Insulation
COP36 DTH Drill Bits For Water Well Drilling , DTH Hammer Bits Heat Insulation
Product Details:
Place of Origin: Hunan, China (Mainland)
Brand Name: New Diamond
Certification: ISO9001:2008
Model Number: COP36
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton packaging and wooden box packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: According to order quantity
Contact Now
Detailed Product Description
Type: Drill Bit Processing Type: Forging
Use: Ore Mining Color: Required
Button Shape: Spherical/Ballistic/parabolic/sharp/falt Bottons Delivery Time: 3-5 Days For Sample
High Light:

hard rock drill bits

,

ballistic button bits

,

Heat Insulation DTH Drill Bits

COP36 DTH Drill Bits For Water Well Drilling , DTH Hammer Bits Heat Insulation



Description

Hunan New Diamond offers top quality DTH hammers and bits which have been tested in the hardest rock formation. Our bits use quality hardened steel alloy for the bit body and premium quality tungsten carbide buttons. With superb performance and long life span. Our bits won high reputation among our customers.



1. Button Shape: Spherical,Semi-ballistic,Ballistic.
2. Durable performance, wear resistant and withstanding large impacting force.
3. Long life span.
5. Fast delivery time.



Applications

It is mainly used in geological exploration, coal mine, water conservancy and hydropower, highway, railway, bridge, construction and so on.



Specifications

THE Drill Head Diameter(mm) Spline Key Number NO.Air Holes Gauge Buttons Front Buttons Weight(KG)
152 - 2 8XØ18 7XØ16 22.0
165 - 2 8XØ18 8XØ16 26.0
175 - 2 8XØ18 10XØ16 27.0
190 - 2 10XØ18 12XØ16 28.5
203 - 2 10XØ18 13XØ16 29.5
WE can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.

Feature Advantage

1. Long life span: the wear-resist of tungsten carbides is 10-20 times higher compared with other similar materials, which greatly extends the life of the carbide bits;
2. High drilling efficiency: the high grade hardness of the carbides can always stay sharp, which could increase the drilling speeds too;
3. Low cost.

COP36 DTH Drill Bits For Water Well Drilling , DTH Hammer Bits Heat Insulation 0
