CIR 110, CIR150, CIR90 Low Air Pressure DTH Drill Bits Alloy Steel For Hammer , High Penetration

CIR 110, CIR150, CIR90 Low Air Pressure DTH Drill Bits Alloy Steel For Hammer , High Penetration

CIR 110, CIR150, CIR90 Low Air Pressure DTH Drill Bits Alloy Steel For Hammer , High Penetration
CIR 110, CIR150, CIR90 Low Air Pressure DTH Drill Bits Alloy Steel For Hammer , High Penetration
CIR 110, CIR150, CIR90 Low Air Pressure DTH Drill Bits Alloy Steel For Hammer , High Penetration
Product Details:
Place of Origin: Hunan, China (Mainland)
Brand Name: New Diamond
Certification: ISO9001:2008
Model Number: CIR/J
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton packaging and wooden box packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: According to order quantity
Contact Now
Detailed Product Description
Type: Drill Bit Processing Type: Forging
Use: Ore Mining Color: Required
Button Shape: Spherical/Ballistic/parabolic/sharp/falt Bottons Delivery Time: 3-5 Days For Sample
High Light:

hard rock drill bits

,

ballistic button bits

,

High Penetration DTH Drill Bits

CIR 110, CIR150, CIR90 Low Air Pressure DTH Drill Bits Alloy Steel For Hammer , High Penetration



Description

Hunan New Diamond offers top quality DTH hammers and bits which have been tested in the hardest rock formation. Our bits use quality hardened steel alloy for the bit body and premium quality tungsten carbide buttons. With superb performance and long life span. Our bits won high reputation among our customers.

1. Button Shape: Spherical,Semi-ballistic,Ballistic.
2. Durable performance, wear resistant and withstanding large impacting force.
3. Long life span.
5. Fast delivery time.



Feature Advantage

1. Long life span: the wear-resist of tungsten carbides is 10-20 times higher compared with other similar materials, which greatly extends the life of the carbide bits;
2. High drilling efficiency: the high grade hardness of the carbides can always stay sharp, which could increase the drilling speeds too;
3. Low cost.



Applications

It is mainly used in geological exploration, coal mine, water conservancy and hydropower, highway, railway, bridge, construction and so on.



Specifications

Type Dia(mm) Spline NO Weight(kg)
CIR65 65 4 1.5
68 4 1.6
CIR70 76 4 2.0
85 4 2.3
CIR90 90 6 3.75
110 6 4.8
CIR110 110 6 6.2
130 6 8.05
140 6 9.0
CIR150 155 6 16.7
165 6 17.55
178 6 18.85
CIR170 195 6 24.2
203 6 26.35

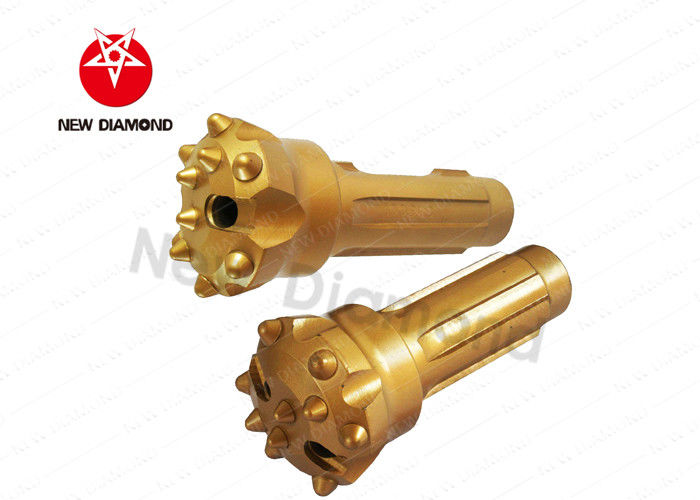

CIR 110, CIR150, CIR90 Low Air Pressure DTH Drill Bits Alloy Steel For Hammer , High Penetration 0

CIR 110, CIR150, CIR90 Low Air Pressure DTH Drill Bits Alloy Steel For Hammer , High Penetration 1
