Hunan New Diamond Construction Machinery Co., Ltd.
 |
| Place of Origin: | Hunan, China (Mainland) |
| Brand Name: | New Diamond |
| Certification: | ISO9001:2008 |
| Model Number: | N series Hammer |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton packaging and wooden box packing |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | According to order quantity |
| Processing Type: | Forging | Use: | Ore Mining |
|---|---|---|---|
| Type: | Hammer | Color: | Required |
| Machine Type: | Drilling Equipment | Usege: | Mining&Construction&Water Well Drilling |
| High Light: | dth hammer,oil drilling tools |
||
Description
DTH hammers are used for blast hole drilling and water well drilling project.Working with DTH drilling pipe and DTH drill bit, mainly applied in Mining,Marble quarry or well drilling and other construction projects.
the modern theory is adopted in the structural design, which makes the stress wave duration longer, the stress amplitude is lower, and the piston life is long.
Applications
Widely used in mines, quarries, earthworks and other engineering drilling blasting hole, guardrail hole, mountain reinforcement, anchorage and other engineering holes, geothermal exploration hole, Well bore and other fields.
Specifications
| Technical Data | |||
| Length(Without Bit) | N100 | N120 | N125 |
| 1510mm | 1900mm | 1900mm | |
| Weight(Without Bit) | 288.00kg | 485.00kg | 485.00kg |
| External Diameter | Ø226mm | Ø275mm | Ø275mm |
| Bit Shank | NUMA100 | NUMA120 | NUMA125 |
| Hole Range | Ø254-Ø311mm | Ø305-Ø445mm | Ø30-Ø445mm |
| Connection Thread | API4 1”/2REG | API6 5”/8REG | API6 5”/8REG |
| Working Pressure | 2.0-3.5Mpa | 2.0-3.5Mpa | 2.0-3.5Mpa |
| Impact Rate at 17 Bar | 18HZ | 18HZ | 16HZ |
| Recommended Rotation Speed | 15-25r/min | 15-25r/min | 15-25r/min |
| Air Consumption | 1.0Mpa:22.0m³/min | 1.0Mpa:30.0m³/min | 1.0Mpa:30.0m³/min |
Feature Advantage
1.Price commitment: in order to ensure the high reliability of products, raw material selection are using grapefruit brand products; under the same competitive conditions, and not to reduce product technical performance on the basis of sincerity at a favorable price to customers.
2.Quality commitment: product manufacturing and testing have quality records and inspection data; the performance of the product can withstand customer inspection.
3.Customer service: in order to create new diamond brand, enhance the visibility of enterprises, establish corporate image, we serve customers with the principle of "preferential prices, good service, reliable product quality" principle.

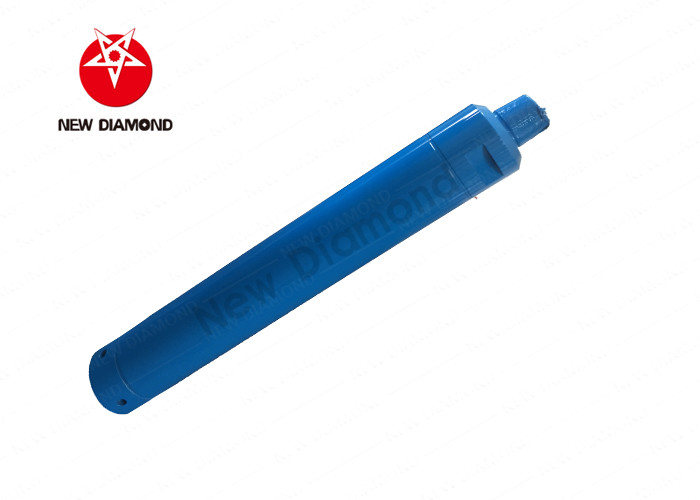

The appearance of the picture is different from that of the actual product, and the actual product is the standard.
| Item Description | Weight(kg) | ||
| N100 | N120 | N125 | |
| 1,Top Sub | 59.00 | 70.00 | 70.00 |
| 2,“O” Ring Of Top Sub | 0.03 | 0.04 | 0.04 |
| 3,Breakout Ring | 0.40 | 0.80 | 0.80 |
| 4,Chenck Valve | 1.60 | 3.00 | 3.00 |
| 5,Spring | 0.30 | 0.10 | 0.10 |
| 6,Compression Buffer | 0.60 | 1.00 | 1.00 |
| 7,Air Distributor | 11.50 | 20.00 | 20.00 |
| 8,Internal Cylinder | 11.00 | 23.00 | 23.00 |
| 9,Piston | 62.00 | 125.00 | 125.00 |
| 10,External Cylinder | 112.00 | 170.00 | 170.00 |
| 11,Guided Sleeve | 18.00 | ||
| 12,“O” Ring Of Stop Ring | 0.03 | 0.04 | 0.01 |
| 13,Stop Ring | 1.50 | 4.50 | 4.00 |
| 14,Breakout Ring | 0.40 | 0.80 | 0.80 |
| 15,Drive Chuck | 26.00 | 49.0 | 45.00 |
| 16,Drill Bit | 115.00 | 129.00 | 175.00 |
